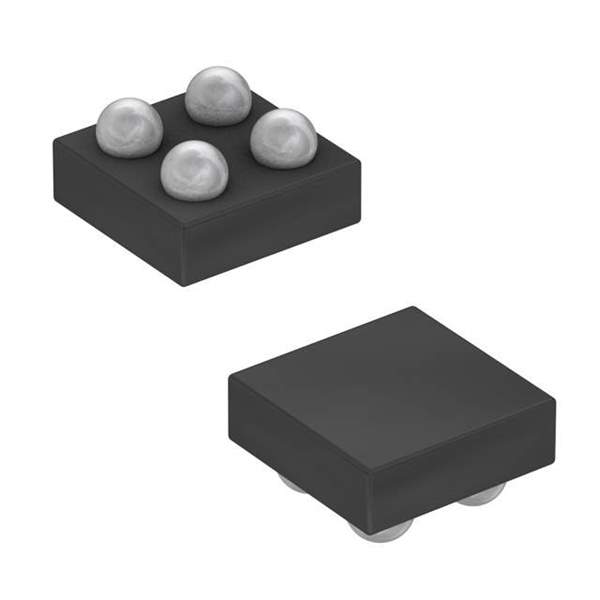

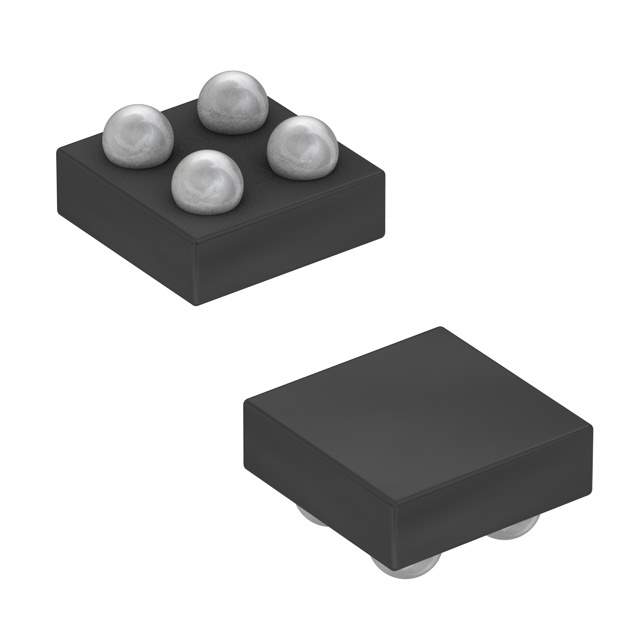

Maxim Integrated MAX2206EBS+T RF Detector

The MAX2206EBS+T is a high-performance, low-cost RF detector from Maxim Integrated, designed to provide precise power measurement in wireless and communication systems. This compact and efficient component is an ideal solution for power control and monitoring in a variety of applications, including base stations, wireless handsets, and RF communication systems.

Key Features

• Frequency Range: The device operates over a wide frequency range of 800MHz to 2GHz, making it suitable for a broad spectrum of RF applications.
• Dynamic Range: It boasts an impressive 45dB dynamic range, providing accurate detection from -45dBm to 0dBm input power levels.
• Temperature Stability: The MAX2206EBS+T offers excellent temperature stability, ensuring consistent performance across various environmental conditions.
• Low Supply Voltage: The device operates from a single 2.7V to 5.5V supply, accommodating a range of power sources and systems.
• Small Package: Available in a compact, 4-bump UCSP (1mm x 1mm) package, it is ideal for space-constrained applications.

Advantages

The MAX2206EBS+T is engineered to deliver high accuracy and linearity, which are crucial for maintaining optimal performance in RF power monitoring. Its low operating voltage and power consumption make it an energy-efficient choice for portable devices. Moreover, its small form factor allows for integration into designs with limited PCB real estate without compromising functionality.

Applications

This RF detector is versatile and can be used in various applications, including:

• Power amplifier control loops
• Transmitter antenna power monitors
• Received signal strength indicators (RSSI)
• Wireless infrastructure
• ISM band applications

The MAX2206EBS+T from Maxim Integrated is a robust and reliable component for RF power detection, offering a combination of performance, efficiency, and compact size to meet the demands of modern wireless communication systems.
