The MAX2205EBS+ from Maxim Integrated is a high-performance RF power detector designed for precision measurement of RF signals in various applications such as wireless and mobile communications, signal monitoring, and automatic gain control systems. With its wide dynamic range and high accuracy, the MAX2205EBS+ is an essential component for engineers who need reliable power detection in their designs.

Key Features

• Wide Frequency Range: The device is capable of detecting RF power within the frequency range of 800MHz to 2.5GHz, making it suitable for a broad spectrum of RF applications.
• High Dynamic Range: It offers an impressive dynamic range of 45dB, ensuring accurate detection from low-power signals to high-power signals without the need for external attenuators.
• Temperature Compensated: The MAX2205EBS+ is temperature compensated, which allows for stable performance across varying environmental conditions.
• Low Power Consumption: Designed with power efficiency in mind, it operates with a low supply current, making it ideal for battery-powered devices.

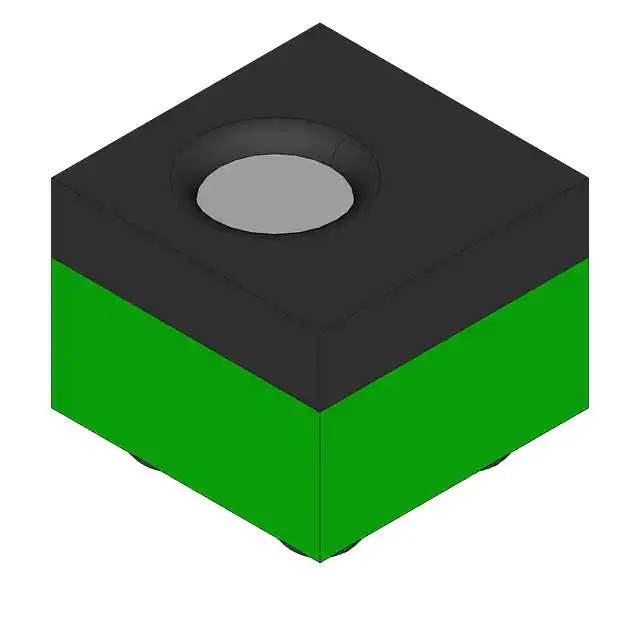

• Small Package: The component is available in a compact, 4-bump UCSP (Ultra Chip-Scale Package) that requires minimal board space, thus facilitating sleek and compact product designs.

Applications

• Wireless and Cellular Infrastructure
• RF Power Amplifier Control
• Transmitter Power Monitoring
• Antenna VSWR Protection
• Portable Battery-Powered Equipment

The MAX2205EBS+ integrates seamlessly into RF signal chains, providing an analog voltage output proportional to the logarithm of the input power. This feature simplifies the interface with analog-to-digital converters and microcontrollers, enabling easy integration into digital systems. Its robust design and straightforward application make it a go-to solution for designers looking to enhance the performance and reliability of their RF systems.

Maxim Integrated's commitment to quality ensures that the MAX2205EBS+ adheres to the highest standards, offering a reliable and efficient solution for RF power detection needs.
