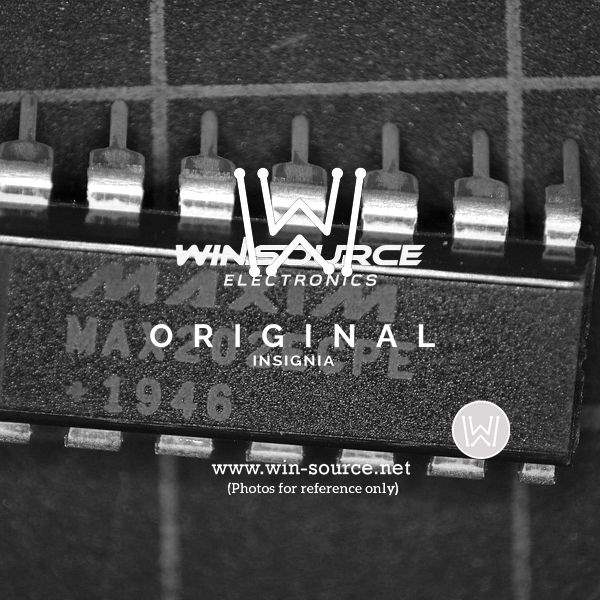

Maxim Integrated MAX202ECPE+ RS-232 Interface IC

The MAX202ECPE+ from Maxim Integrated is a high-performance RS-232 transceiver IC, designed to meet the stringent requirements of EIA/TIA-232 and V.28/V.24 specifications, even at a low power supply of 5V. This device is particularly suitable for applications that require reliable data transmission over long distances or through noisy environments, making it an ideal choice for industrial, telecommunications, and consumer electronics applications.

The MAX202ECPE+ features two drivers and two receivers, providing the essential interface between a digital communication device and a serial port. The chip is capable of converting TTL or CMOS input levels into the RS-232 signal levels required for high-speed data communications. This level of versatility ensures that the MAX202ECPE+ can be used with a wide range of microcontrollers and other digital systems that require serial connectivity.

One of the key advantages of the MAX202ECPE+ is its integrated charge pump circuitry, which eliminates the need for an external dual power supply. This feature simplifies design and reduces the overall component count, leading to cost savings and a more compact solution. The charge pump allows the MAX202ECPE+ to generate the necessary ±10V RS-232 voltage levels from a single 5V power supply, ensuring reliable data transmission even with long cable runs.

The device offers a data rate of up to 120kbps, making it suitable for many serial data communication applications. Additionally, the MAX202ECPE+ includes a shutdown feature that reduces power consumption to just 1µA, making it an excellent choice for battery-powered or power-sensitive systems.

Enclosed in a 16-pin DIP (Dual In-line Package), the MAX202ECPE+ is designed for easy integration into existing and new designs. Its industry-standard pinout ensures compatibility with many existing RS-232 systems, allowing for a straightforward upgrade or replacement path. The MAX202ECPE+ is also available in a variety of other packages, providing flexibility for different space constraints and assembly techniques.

Overall, the Maxim Integrated MAX202ECPE+ RS-232 Interface IC stands out as a robust, reliable solution for serial communication needs, offering designers a mix of high performance, low power consumption, and ease of use.
