Products specifications

Categories Circuit Protection
Manufacturer Maxim Integrated
Packaging Tube/Rail
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 7.5V
Minimum Breakdown Voltage 9V (Typ)
Applications General Purpose
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)

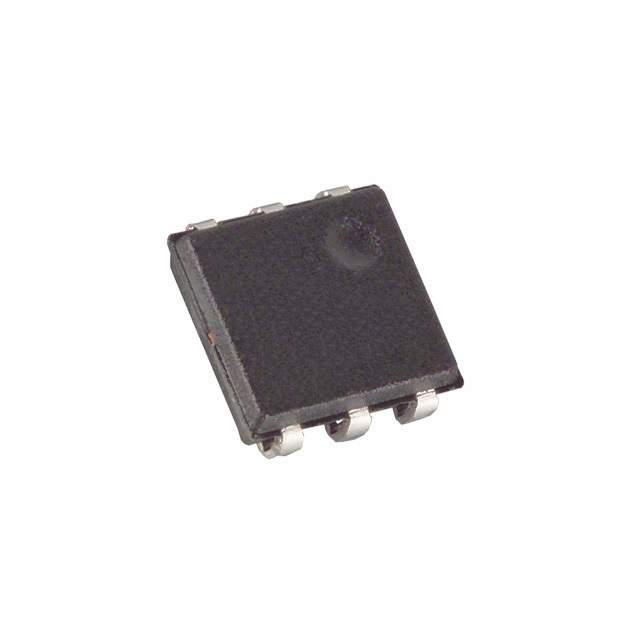

Case / Package 6-TSOC
Win Source Part Number 1035119-DS9502P
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DS9502P CAD Model

Description

The DS9502P from Maxim Integrated is a high-performance, unidirectional electrostatic discharge (ESD) protection diode designed to safeguard sensitive electronic components from the deleterious effects of ESD. It is an ideal solution for applications that demand robust protection in a compact package.

Key Features

  • High ESD Protection: The DS9502P offers an impressive ESD immunity, capable of withstanding ESD events in excess of the IEC 61000-4-2 Level 4 standard, ensuring the safety of your electronic devices during handling and operation.
  • Low Capacitance: With its low loading capacitance, this diode is particularly suitable for protecting high-speed signal lines without significantly affecting signal integrity, making it perfect for applications such as USB interfaces, HDMI, and other high-speed data lines.
  • Small Form Factor: The compact SOT23 package allows the DS9502P to be easily integrated into space-constrained designs without compromising on performance, offering a space-saving solution for ESD protection.
  • Unidirectional Protection: Designed to protect one signal line, the unidirectional configuration of the DS9502P ensures targeted protection for specific pathways, reducing the risk of damage to adjacent components.

Applications

The DS9502P is versatile in its use, providing reliable ESD protection in a variety of applications. It is particularly well-suited for:

  • Cellular handsets
  • Digital cameras
  • MP3 players
  • Personal digital assistants (PDAs)
  • Portable medical devices
  • Other portable electronic devices where space is at a premium

Why Choose DS9502P?

Maxim Integrated's commitment to quality and reliability is evident in the DS9502P. This ESD protection diode is a testament to the company's dedication to providing components that not only meet but exceed industry standards for ESD protection. With its combination of high ESD immunity, low capacitance, and compact design, the DS9502P is an excellent choice for designers looking to enhance the durability and longevity of their electronic products.
