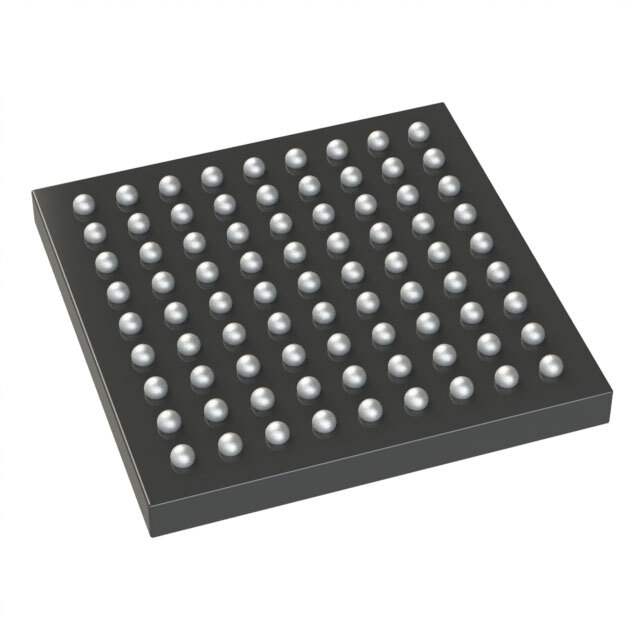

The DS3102GN+ is a state-of-the-art network synchronizer from Maxim Integrated, designed to provide precise timing solutions for demanding applications. This device is particularly well-suited for telecommunications and networking infrastructure, where accurate time synchronization is critical for system performance and reliability.

Key Features

• High Precision: The DS3102GN+ delivers exceptional timing accuracy, which is essential for synchronization in high-speed communication networks.
• Versatility: This device supports a wide range of input frequencies and output clocks, making it adaptable to various network architectures.
• Integrated PLL: It features a Phase-Locked Loop (PLL) that ensures stable and reliable clock outputs even under changing environmental conditions and network jitter.
• Low Jitter: The DS3102GN+ is engineered to produce low-jitter clock signals, which is crucial for maintaining the integrity of high-speed data transmission.
• Compact Packaging: Housed in a small 36-pin SSOP (Shrink Small Outline Package), the DS3102GN+ saves valuable board space and is ideal for dense circuit designs.

Applications

The DS3102GN+ is designed for a variety of applications that require precise timing and synchronization, including:

• SONET/SDH and Synchronous Ethernet networks
• Wireless base stations and network infrastructure
• Broadband access systems
• Test and measurement equipment

Technical Specifications

With a supply voltage range of 3.135V to 3.465V, the DS3102GN+ operates efficiently in standard network environments. Its operating temperature range from -40°C to +85°C ensures reliable performance across various climatic conditions.

Ordering Information

The DS3102GN+ is available for order under the part number DS3102GN+. For more information on purchasing and pricing, please visit Maxim Integrated's official website or contact an authorized distributor.
