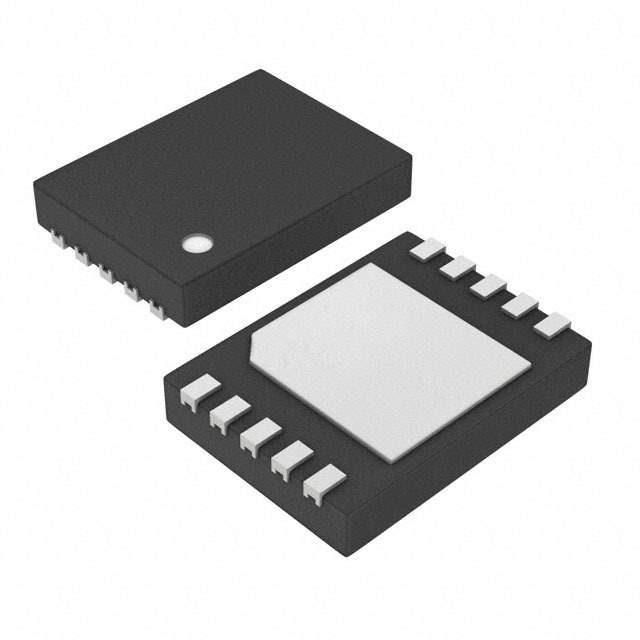

The DS2710G+ is a sophisticated and versatile NiMH (Nickel-Metal Hydride) battery charger integrated circuit designed by Maxim Integrated, a renowned player in the development of innovative analog and mixed-signal products. This compact charger IC is optimized for charging one to four cells, making it an ideal solution for a wide range of portable applications.

Key Features

• Flexible Charging Options: The DS2710G+ supports both rapid and trickle charging modes, enabling quick battery top-ups or maintaining a full charge over extended periods without overcharging.
• Adjustable Charge Rates: Designers can set the charge rate through external resistors, allowing for precise control over the charging process tailored to specific battery capacities and performance requirements.
• Temperature Monitoring: With an integrated temperature sensor interface, the DS2710G+ ensures safe charging by monitoring the battery temperature and preventing overheating.
• Charge Termination: The charger IC includes multiple charge termination schemes, including negative delta voltage (ΔV), maximum voltage, maximum temperature, and safety timer, to stop the charging process once the battery is fully charged.
• High-Efficiency Design: Maxim Integrated's focus on efficiency is evident in the DS2710G+, which operates with minimal power loss, contributing to extended battery life and reduced energy consumption.

Applications

The DS2710G+ is suitable for a multitude of applications, including but not limited to:

• Portable consumer electronics
• Handheld devices
• Medical equipment
• Personal care appliances
• Power tools

Technical Specifications

With a wide input voltage range and a compact surface-mount package, the DS2710G+ offers a practical solution for integrating into modern electronic designs. Its robust protection features ensure long-term reliability and safety for both the charger and the batteries it services.

For detailed technical specifications, reference designs, and application notes, visit Maxim Integrated's official website or contact their support team for personalized assistance.
