Maxim Integrated DS2406P+T&R Dual Addressable Switch Plus Memory

The Maxim Integrated DS2406P+T&R is an innovative and versatile component that combines the functionality of a dual addressable switch with additional memory capabilities. This device is part of the renowned 1-Wire® family, which is known for its minimal wiring requirements, as it operates over a single data line plus ground. The DS2406P+T&R is specifically designed for applications where remote monitoring and control of a wide range of devices is essential.

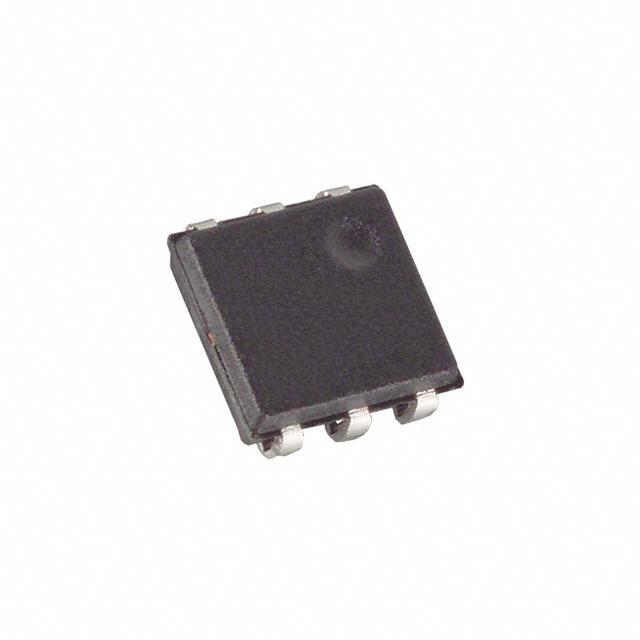

Encased in a compact TSOC-6 package, the DS2406P+T&R offers a robust solution for system designers looking to integrate digital switching capabilities with the added benefit of non-volatile memory storage. This makes it an ideal choice for environmental control systems, alarm and security devices, and industrial automation, where long-term reliability and flexibility are crucial.

At the heart of the DS2406P+T&R lies its unique ability to control two separate channels, allowing for the independent operation of external devices. Each channel can be individually configured as either an open-drain switch or as a logic-level sensor input, providing a high level of customization for various application needs. Moreover, the built-in 1024 bits of EPROM memory can be used for storing configuration settings or other data, which remains intact even without power, thanks to its non-volatile nature.

The device supports the 1-Wire protocol, enabling multiple DS2406P+T&R units to be connected to a single data line for a simplified and cost-effective wiring setup. This feature is particularly beneficial in complex systems where multiple switching points are required but space and wiring constraints are a concern. Additionally, the 1-Wire interface ensures that each device has a unique 64-bit registration number, which prevents any addressing conflicts and simplifies inventory and tracking processes.

Maxim Integrated's DS2406P+T&R is supplied in tape and reel form (T&R), ensuring compatibility with automated manufacturing processes and contributing to increased productivity and reduced production costs. With its combination of dual switch control, memory storage, and ease of integration, the DS2406P+T&R stands out as a smart choice for designers aiming to enhance the functionality and reliability of their systems.
