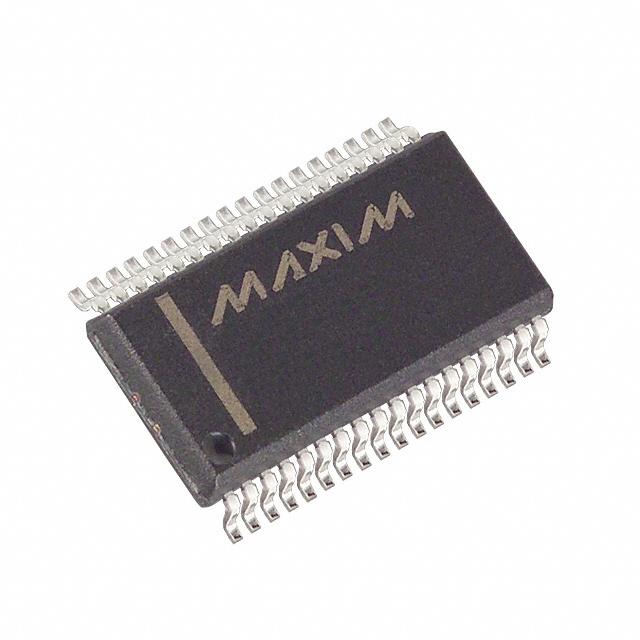

The DS2117MB, from Maxim Integrated, is a high-performance, feature-rich T1/J1/E1 line interface unit that is engineered to meet the demanding requirements of telecommunications applications. It is a versatile and robust solution designed to interface between the digital telecommunication equipment and the physical T1/J1/E1 line.

Key Features

• Integrated Line Interface: The DS2117MB integrates a complete line interface in a single chip, which simplifies design and reduces board space requirements.
• Programmable: It offers programmable transmit pulse shapes, which enables it to be tailored to different system requirements and standards.
• Crystal-Less Operation: This device can operate without an external crystal, which reduces the bill of materials and simplifies the design.
• Jitter Attenuator: The built-in jitter attenuator ensures signal integrity by reducing the effects of clock and data recovery jitter.
• Power Supply: It operates from a single +5V power supply, ensuring compatibility with a wide range of system designs.

Applications

The DS2117MB is ideal for a multitude of applications within the telecommunication sector, including:

• Digital Loop Carriers
• Channel Service Units
• Data Service Units
• Wireless Base Stations
• ISDN Primary Rate Interfaces
• And other T1/J1/E1 transmission equipment

Performance and Reliability

Maxim Integrated's DS2117MB is designed to deliver reliable performance in the most challenging environments. Its robust design ensures long-term reliability, making it an excellent choice for critical telecommunications infrastructure. With Maxim Integrated's reputation for quality, you can trust the DS2117MB to maintain communication integrity and provide continuous service without interruption.

For detailed technical specifications, application notes, and support documents, interested parties are encouraged to visit the Maxim Integrated official website or contact their sales and technical support team.
