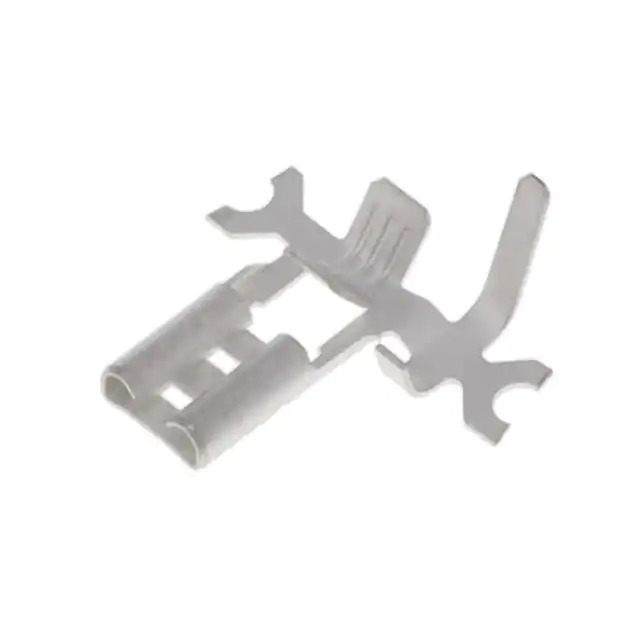

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length -
Length - Overall -
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.110" ~ 0.150" (2.79mm ~ 3.81mm)
Base Product Number 1742088
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364894-1742088-2
Ultra Librarian 3D Model Ultra Librarian 1742088-2 CAD Model

Description

The TE Connectivity AMP Connectors Faston series offers a reliable solution for quick connect and quick disconnect applications in the field of connectors and interconnects.

  • Win Source Part Number: 1364894-1742088-2
  • Terminal Type: 90-Degree Angled and Flag-Shaped
  • Mounting: Free Hanging (In-Line) and Right-Angle
  • Wire Gauge: 14 to 18 AWG
  • Contact Finish: Tin
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Insulation: Non-Insulated
  • Termination: Crimp
  • Insulation Diameter: 0.110" ~ 0.150" (2.79mm ~ 3.81mm)
  • Product Status: Active
