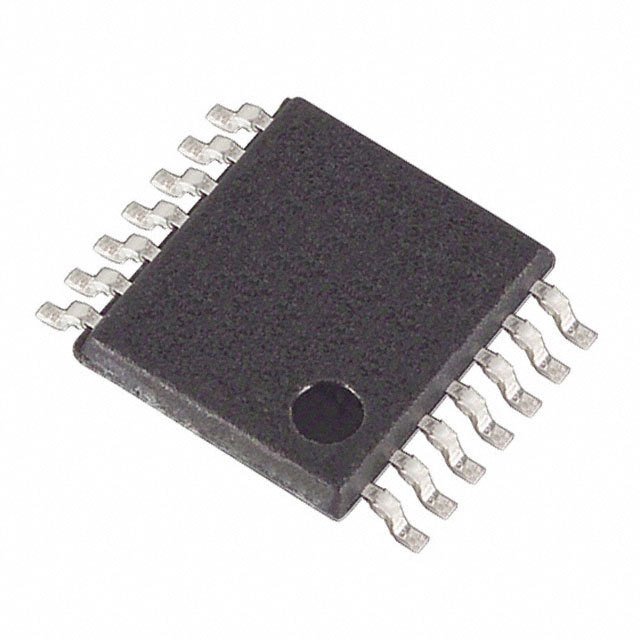

The DS1803E-50+T&R is a versatile digital potentiometer designed and manufactured by Maxim Integrated. This component is part of a series of digitally-controlled potentiometers that offer a reliable solution for adjusting and controlling resistance values electronically. The DS1803E-50+T&R is particularly suitable for applications that require precise calibration and tuning, which can be achieved through its digital interface.

Key Features

• Resistance Range: The DS1803E-50+T&R offers a resistance range of 50kΩ, which provides ample flexibility for various applications.
• Dual Potentiometer: It features two potentiometers in one package, enabling the control of two channels simultaneously, making it a cost-effective and space-saving solution.
• Interface: The device is equipped with a 2-wire serial interface, ensuring easy communication with microcontrollers and other digital systems.
• Non-Volatile Memory: It includes non-volatile memory (EEPROM) to store the resistance settings, which means the device will maintain the last position before power-off, and restore it upon the next power-up.
• Power Supply: The digital potentiometer operates on a wide power supply range from 2.7V to 5.5V, making it suitable for both low-power and standard applications.
• Packaging: The component is available in a Tape and Reel (T&R) package, facilitating automated assembly processes and bulk handling.

Applications

The DS1803E-50+T&R is ideal for a variety of applications, including but not limited to:

• Volume control in audio systems
• Brightness adjustment in lighting systems
• Calibration of sensors and instrumentation
• Automotive electronics for tuning and adjustments
• Industrial control systems for setting operational parameters

With its high precision and digital control, the DS1803E-50+T&R from Maxim Integrated is an excellent choice for designers looking to integrate a reliable and flexible digital potentiometer into their electronic designs.
