The 78M6613-IMR/F/PC1 is a highly integrated, programmable power measurement and monitoring IC from Maxim Integrated. This advanced solution is designed for real-time energy monitoring and control applications within residential, commercial, and industrial environments.

Key Features

• High Accuracy: With its precision measurement capabilities, the 78M6613-IMR/F/PC1 ensures accurate energy data, which is critical for managing energy consumption efficiently.
• On-Chip DSP: The device includes a fully integrated digital signal processor (DSP) that performs real-time calculations for energy metering, which includes active and reactive power, RMS voltage, RMS current, and power factor.
• Multi-Load Monitoring: Capable of monitoring up to three single-phase AC loads simultaneously, making it a versatile choice for various applications.
• Embedded Metrology: The onboard metrology functions eliminate the need for external components, reducing system complexity and cost.
• Programmable: Users can customize the 78M6613-IMR/F/PC1 according to their specific application requirements thanks to its programmable nature.
• Communication Interface: It features a UART/SPI communication interface for easy integration with external microcontrollers or processors.

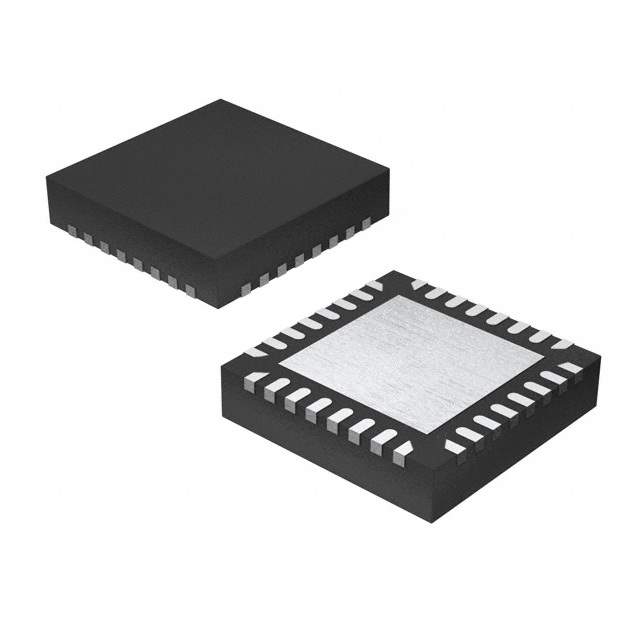

• Compact Footprint: The device comes in a compact 32-pin QFN package, suitable for space-constrained applications.

Applications

The 78M6613-IMR/F/PC1 is ideal for a range of applications that require precise power measurement and control. These include:

• Smart power strips and surge protectors
• Home energy management systems
• Building automation and control systems
• Industrial power monitoring
• Appliance energy monitoring

Technical Specifications

The IC operates over a wide supply voltage range and is designed to interface directly with current transformers and potential dividers, ensuring compatibility with a wide range of sensors. The integrated non-volatile memory (NVM) allows for the storage of calibration coefficients and application parameters, ensuring persistent accuracy and customization across power cycles.

With its robust feature set, the 78M6613-IMR/F/PC1 from Maxim Integrated is a powerful choice for developers looking to implement sophisticated energy monitoring solutions with minimal additional components.
