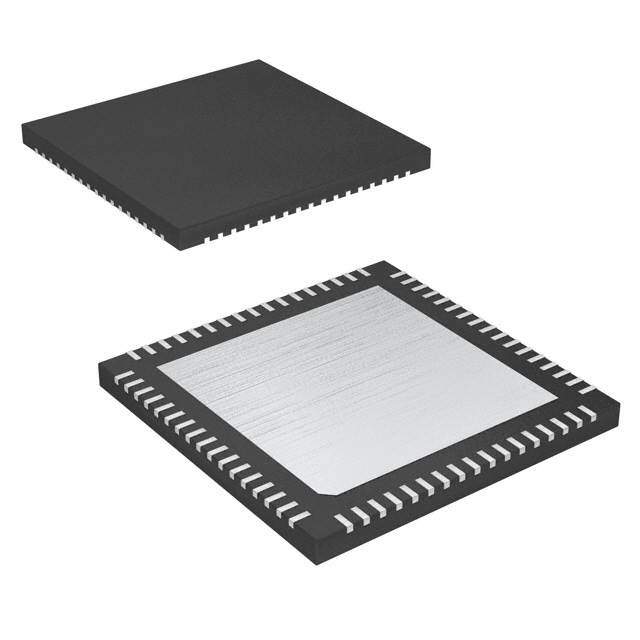

Maxim Integrated 73S1217F-68IM/F Smart Card Interface

The Maxim Integrated 73S1217F-68IM/F is a highly integrated smart card interface IC designed to provide a reliable link between smart cards and microcontrollers or microprocessors in point-of-sale (POS) terminals, security systems, and other smart card-enabled applications. This advanced IC is engineered to simplify design and reduce the cost of smart card reader solutions.

This smart card interface is compliant with ISO 7816 and EMV (Europay, MasterCard, and Visa) standards, ensuring compatibility with a wide range of smart cards. The 73S1217F-68IM/F offers a versatile connection to any microcontroller with a serial interface (SPI or I²C), which allows for easy integration into existing systems.

The device features an on-chip 5V to 3V regulator, capable of supplying up to 80mA to the smart card, making it suitable for powering both conventional 5V cards and newer 3V cards without the need for external components. It also includes multiple protection features such as short-circuit and thermal protection, ensuring robust performance and reliability in harsh environments.

With its built-in level shifters, the 73S1217F-68IM/F can interface with microcontrollers operating from 1.8V to 5V, providing design flexibility. The IC also incorporates an automatic activation sequence and deactivation sequence for smart cards, along with hardware sequencers to minimize the software overhead during smart card transactions.

Additional features of the 73S1217F-68IM/F include an auxiliary I/O pin that can be used for card detection or as a GPIO, a programmable clock generator that supports a wide range of clock frequencies, and an interrupt pin to signal the host microcontroller of events such as card insertion or removal.

Overall, the Maxim Integrated 73S1217F-68IM/F is a powerful solution for designers looking to incorporate smart card interfaces into their applications with minimal design effort and maximum reliability. Its comprehensive feature set and compliance with industry standards make it an ideal choice for a variety of smart card applications.
