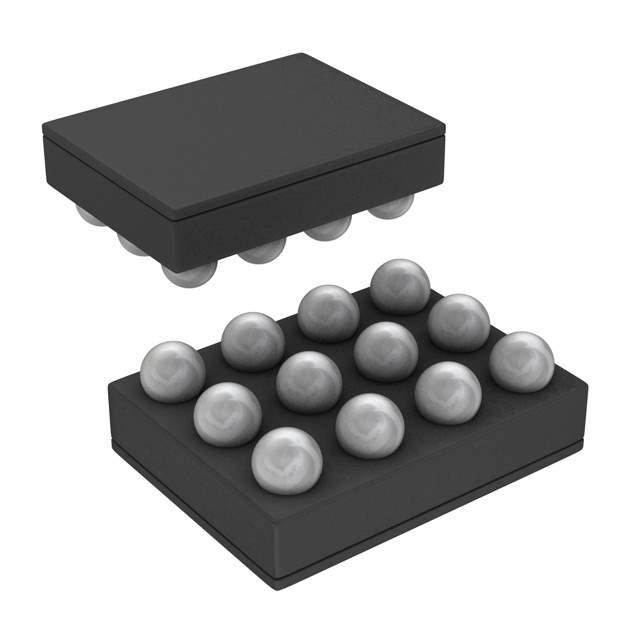

LM3530UME-40B/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM3530UME-40B/NOPB

Part No LM3530UME-40B/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 12DSBGA
Datasheet
LM3530UME-40B/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 1
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Output Voltage 40V
Channel Output Current 30mA
Frequency 500kHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 12-DSBGA
Win Source Part Number 139771-LM3530UME-40B/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM3530UME-40B/NOPB CAD Model

Description

The LM3530UME-40B/NOPB is a high-performance, adaptive current mode, pulse-width modulation (PWM) LED driver designed and manufactured by Texas Instruments, a global semiconductor design and manufacturing company.

  • Brightness Control: Precise brightness control through 256-step logarithmic brightness mapping
  • Input Voltage Range: 2.7V to 5.5V
  • Charge Pump: Highly efficient charge pump with 1x, 1.5x and 2x modes
  • Brightness Control Inputs: I2C and PWM
  • Ambient Light Sensor: Programmable ambient light sensor input with an internal 8-bit analog-to-digital converter
  • Protection: Built-in over-voltage and short-circuit protection
  • Package: Small, space-saving micro SMD package
