Same model may have multiple batches, images only for reference.

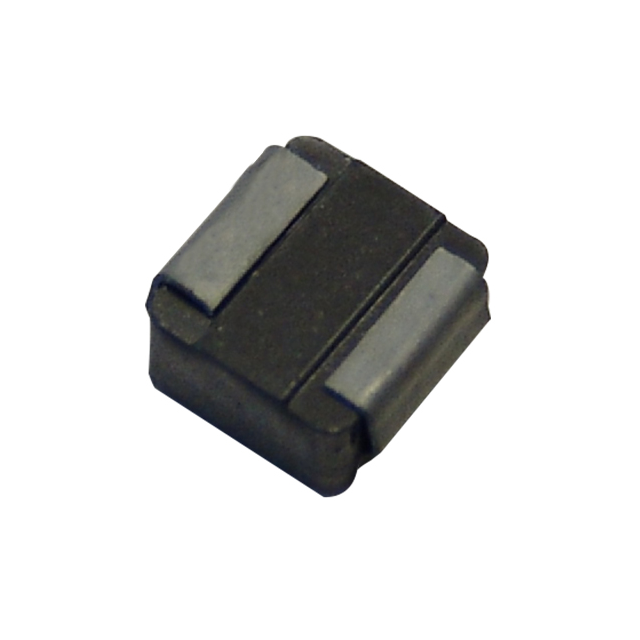

MND-07CZI1R0M-XB-RU Real Image
Same model may have multiple batches, images only for reference.

MND-07CZI1R0M-XB-RU

Part No MND-07CZI1R0M-XB-RU
Manufacturer Mag Layers
Catalog Fixed Inductors
Description FIXED IND 1UH 21.8A 5 MOHM SMD  /  1 µH Shielded Molded Inductor 21.8 A 5mOhm Max Nonstandard
Datasheet
MND-07CZI1R0M-XB-RU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Mag Layers
Series MND-XB
Package Tape & Reel (TR)
Type Molded
Material - Core Alloy
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 21.8 A
Shielding Shielded
DC Resistance (DCR) 5mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.295" L x 0.283" W (7.50mm x 7.20mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8504..50.4000
Other Names 2669-MND-07CZI1R0M-XB-RUTR
Standard Package 10
Win Source Part Number 1079749-MND-07CZI1R0M-XB-RU
Ultra Librarian 3D Model Ultra Librarian MND-07CZI1R0M-XB-RU CAD Model

Description

The 1079749-MND-07CZI1R0M-XB-RU is a fixed inductor used in Inductors, Coils, Chokes manufactured by Mag Layers.

  • Series: MND-XB
  • Shielding: shielded
  • Tolerance: ±20%
  • Package: tape & reel (TR)
  • Dimension: 0.295" L x 0.283" W (7.50mm x 7.20mm)
  • Inductance: 1 µH
  • DC Resistance (DCR): 5mOhm Max
  • Operating Temperature Range: -55°C ~ 125°C
  • HTSUS: 8504..50.4000
