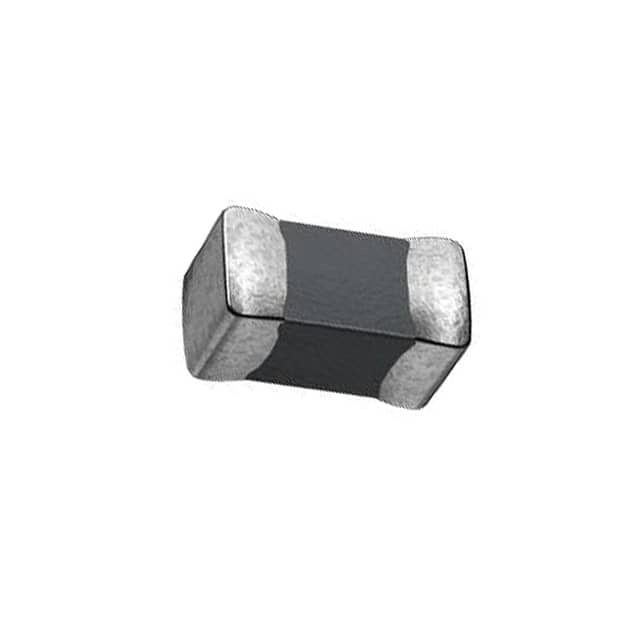

Same model may have multiple batches, images only for reference.
GMLB-160808-0470P-N8-RU Mag Layers
Same model may have multiple batches, images only for reference.

GMLB-160808-0470P-N8-RU

Part No GMLB-160808-0470P-N8-RU
Manufacturer Mag Layers
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 470 OHM 0603 1LN  /  470 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0603 (1608 Metric) 1.5A 150mOhm
Datasheet
GMLB-160808-0470P-N8-RU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr Mag Layers
Series GMLB-160808-P
Package Tape & Reel (TR)
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 470 Ohms @ 100 MHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 150mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0603 (1608 Metric)
Mounting SMD (SMT)
Height (Max) 0.037" (0.95mm)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 2669-GMLB-160808-0470P-N8-RU
Standard Package 4,000
Win Source Part Number 1117454-GMLB-160808-0470P-N8-RU
Ultra Librarian 3D Model Ultra Librarian GMLB-160808-0470P-N8-RU CAD Model

Description

The GMLB-160808-0470P-N8-RU is a ferrite bead and chip filter from Mag Layers, with a signal line filter type and 1 line.

  • Impedance: 470 Ohms @ 100 MHz
  • DC Resistance (DCR) (max): 150mOhm
  • Package: tape & reel (TR)
  • Mounting Type: SMD (SMT)
  • Height (max): 0.037" (0.95mm)
  • Standard Package: 4,000
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.50.4000
  • Other names: 2669-GMLB-160808-0470P-N8-RU
