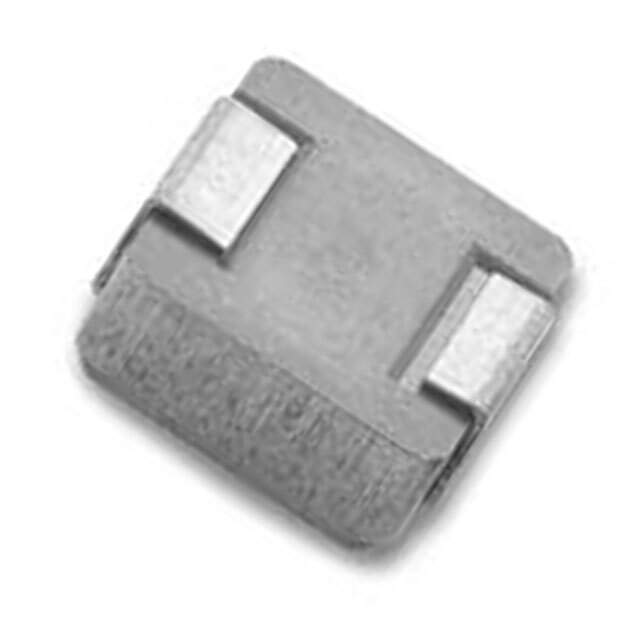

MMD-12FD-2R2M-V1-RU Real Image
Same model may have multiple batches, images only for reference.

MMD-12FD-2R2M-V1-RU

Part No MMD-12FD-2R2M-V1-RU
Manufacturer Mag Layers
Catalog Fixed Inductors
Description FIXED IND 2.2UH 40.0A 4.2 OH SMD  /  2.2 µH Shielded Molded Inductor 22 A 4.2mOhm Max Nonstandard
Datasheet
MMD-12FD-2R2M-V1-RU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Mag Layers
Series V1
Package Tape & Reel (TR)
Type Molded
Material - Core Metal
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 22 A
Current - Saturation (Isat) 40A
Shielding Shielded
DC Resistance (DCR) 4.2mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.520" L x 0.508" W (13.20mm x 12.90mm)
Height - Seated (Max) 0.252" (6.40mm)
MSL Level 1 (Unlimited)
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8504.50.4000
Other Names 2669-MMD-12FD-2R2M-V1-RUTR
Standard Package 10
Win Source Part Number 1079525-MMD-12FD-2R2M-V1-RU
Ultra Librarian 3D Model Ultra Librarian MMD-12FD-2R2M-V1-RU CAD Model

Description

The Mag Layers MMD-12FD-2R2M-V1-RU is a fixed inductor electronic component that is widely used in various electronic applications.

  • Inductance: 2.2μH
  • Tolerance: ±20%
  • Shielded: Yes
  • DC Resistance: 4.2mOhm Max
  • Mounting: Surface Mountable
  • Package: Tape and Reel
  • Temperature Range: -55°C to 125°C
  • Current Rating: 22Amps
  • REACH Compliant: Yes
  • MSL Level: 1 (Unlimited)
