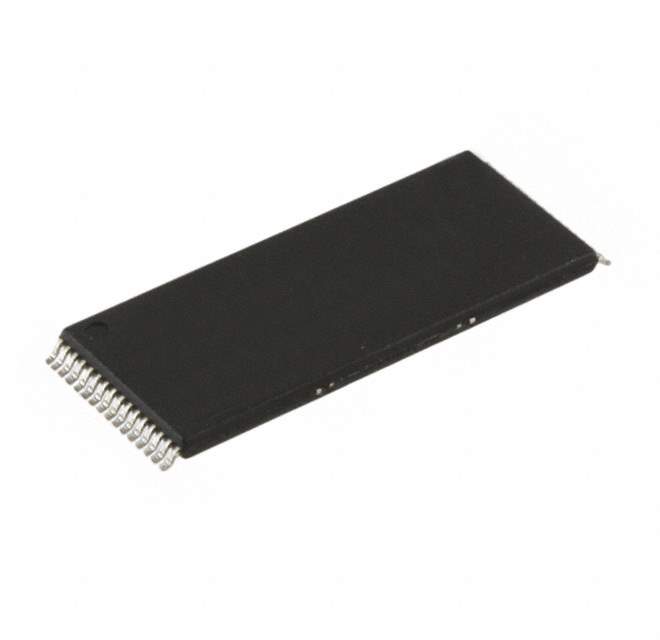

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features FLASH - NOR Memory IC 4Mb (512K x 8) Parallel 90 ns 32-TSOP
Manufacturer Macronix
Series MX29F
Package Tray
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting Surface Mount
Package 32-TFSOP (0.724", 18.40mm Width)
Case / Package 32-TSOP
Family Name MX29F040
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Quantity per package 156
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 886622-MX29F040CTC-90G
Ultra Librarian 3D Model Ultra Librarian MX29F040CTC-90G CAD Model

Description

The Macronix MX29F040CTC-90G is a FLASH - NOR Memory IC with a capacity of 4Mb (512K x 8).

  • Interface: Parallel 90 ns
  • Package: 32-TFSOP (0.724", 18.40mm Width)
  • Series: MX29F series IC
  • Operating Temperature: 0°C ~ 70°C (TA)
  • Supply: Limited supply product with a quantity of 156 per package
  • Family: MX29F040 family IC
  • ECCN: EAR99
  • REACH: REACH unaffected
  • Usage: Widely used in Integrated Circuits (ICs) and is popular in the market
