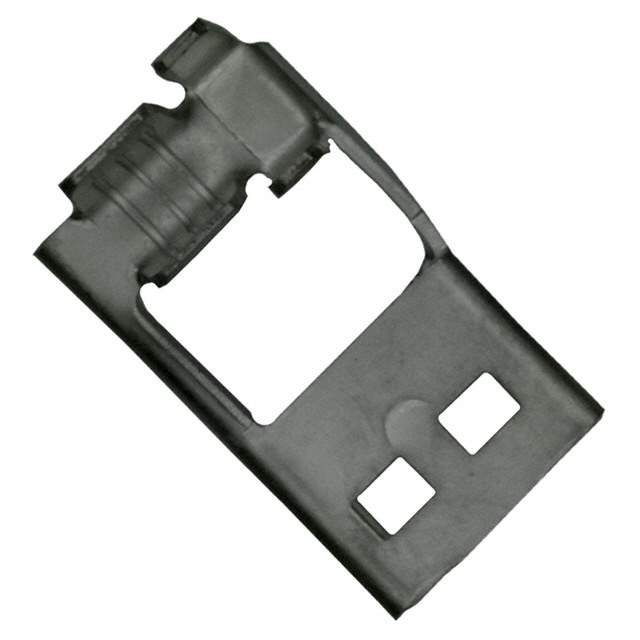

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.090" ~ 0.140" (2.29mm ~ 3.56mm)
Base Product Number 60290
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names A27650-ND,2266-60290-2TR,602902,-60290-2-SI,60290-2-ND,A27650TR,A27650CT,A27650
Standard Package 3,000
Win Source Part Number 1013632-60290-2
Ultra Librarian 3D Model Ultra Librarian 60290-2 CAD Model

Description

The TE Connectivity AMP Connectors 1013632-60290-2 is a package of 3,000 female terminals with an angled - 90° flag and crimp termination.

  • Quantity: 3,000
  • Terminal Type: Female
  • Angle: 90° Flag
  • Termination: Crimp
  • Wire Gauge: 14-18 AWG
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulation: Non-Insulated
  • Insulation Diameter: 0.090" ~ 0.140" (2.29mm ~ 3.56mm)
  • Mounting: Free Hanging (In-Line) or Right Angle
  • ECCN: EAR99
  • HTSUS: 8536.90.4000
