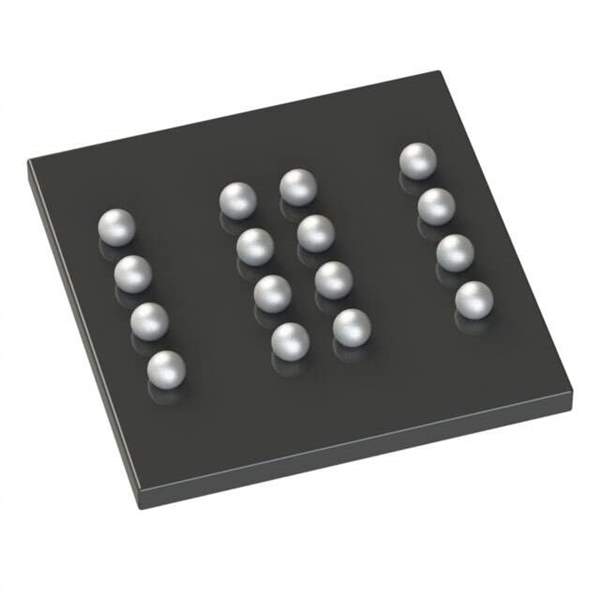

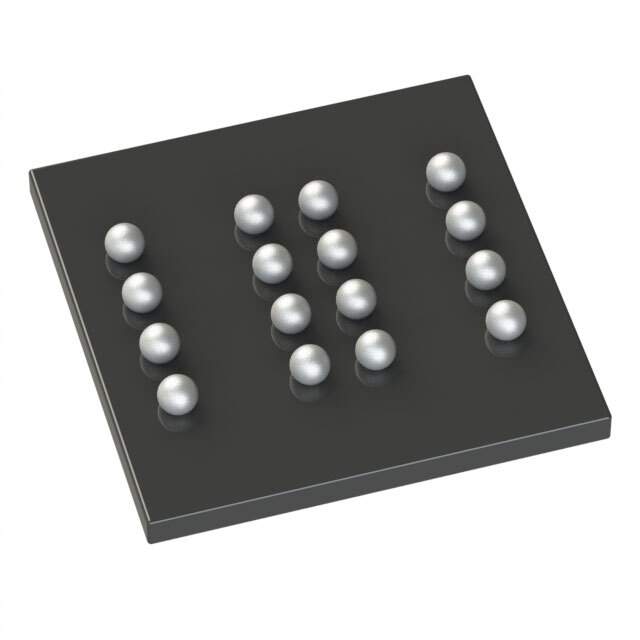

MX25U12843GBBI00 Real Image
Same model may have multiple batches, images only for reference.

MX25U12843GBBI00

Part No MX25U12843GBBI00
Manufacturer Macronix
Catalog Unclassified Memory
Description IC FLSH 128MBIT SPI/QUAD 16WLCSP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 27 Weeks
Features FLASH - NOR Memory IC 128Mb (16M x 8) SPI - Quad I/O, QPI 133 MHz 16-WLCSP
Manufacturer Macronix
Series MXSMIO™
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 16-UFBGA, WLCSP
Case / Package 16-WLCSP
Family Name MX25U12843
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 8542.32.0071
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 886604-MX25U12843GBBI00
Ultra Librarian 3D Model Ultra Librarian MX25U12843GBBI00 CAD Model

Description

Macronix's MXSMIO™ series MX25U12843GBBI00 is a high-quality integrated circuit that is designed to operate in a wide temperature range of -40°C ~ 85°C (TA).

  • Type: FLASH - NOR Memory IC 128Mb (16M x 8) SPI - Quad I/O, QPI 133 MHz 16-WLCSP
  • Mounting: Surface Mount 16-UFBGA, WLCSP package
  • Packing: Reel-TR with 3000 pieces per package
  • Popularity: Medium
  • Supply and Demand: Limited
  • Estimated Production Lead Time: 27 weeks
  • REACH: REACH unaffected
