MX25R3235FM1IH0 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Macronix
Series MXSMIO™
Package Tube
Product Status Not For New Designs
Programmable Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 32Mbit
Memory Organization 4M x 8
Memory Interface SPI - Quad I/O
Clock Frequency 80 MHz
Write Cycle Time - Word, Page 100µs, 4ms
Voltage - Supply 1.65V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount

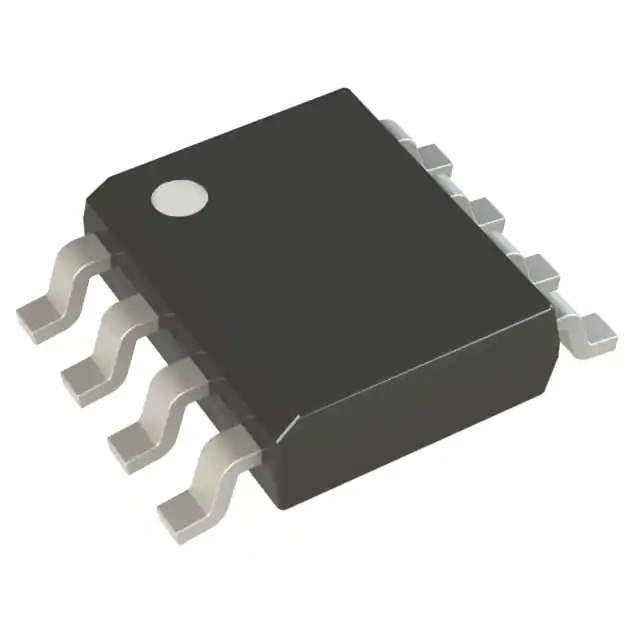

Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOP
Base Product Number MX25R3235
Standard Package 98 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 849393-MX25R3235FM1IH0
Ultra Librarian 3D Model Ultra Librarian MX25R3235FM1IH0 CAD Model

Description

The MX25R3235FM1IH0 is a 32Mbit FLASH - NOR memory integrated circuit (IC) from Macronix.

  • Memory Type: FLASH - NOR
  • Memory Size: 32Mbit
  • Supply Voltage: 1.65V to 3.6V
  • Clock Frequency: 80 MHz
  • Write Cycle Time: 100µs for word and 4ms for page
  • Memory Interface: SPI - Quad I/O
  • Package: 8-SOIC
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 85°C
  • Series: MXSMIO™
  • Status: Not Recommended for New Designs
