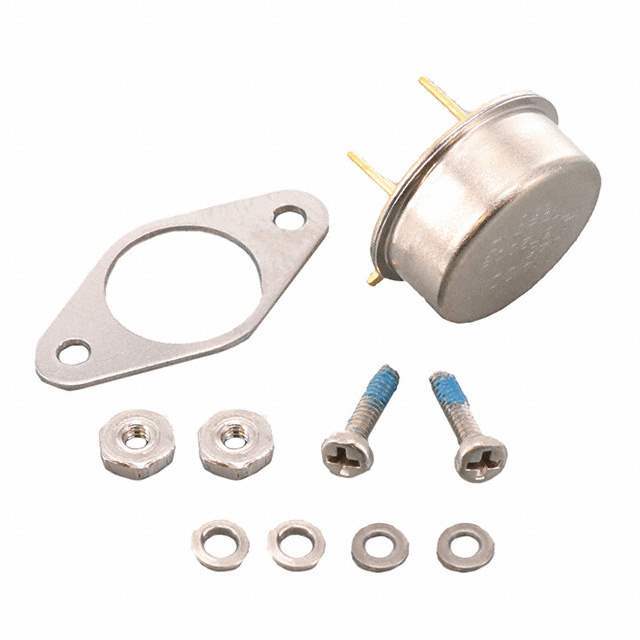

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tray
Product Status Active
Frequency 2MHz ~ 1.7GHz
P1dB 8dBm
Gain 20dB
Noise Figure 4.2dB
RF Type General Purpose
Voltage - Supply 15V
Current - Supply 34mA
Test Frequency 2MHz ~ 1.7GHz
Grade -
Package / Case TO-8 Style, 4 Lead
Supplier Device Package TO-8
Ultra Librarian 3D Model Ultra Librarian A24 CAD Model

Description

The A24 RF amplifier is a discrete hybrid design, which uses thin film manufacturing processes for consistent performance and high reliability.This 2 stage bipolar transistor feedback amplifier design displays impressive performance over a broadband frequency range. An active DC biasing network insures temperature stable performance.
