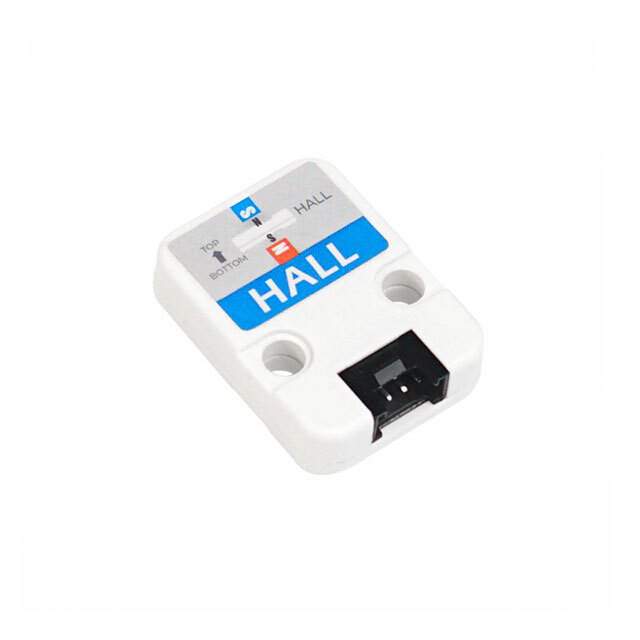

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Expansion Boards, Daughter Cards
Mfr M5Stack Technology Co., Ltd.
Package Retail Package
Platform M5Stack
Type Sensor
Function Magnetic Hall Effect
Utilized IC / Part A3144E
Contents Board(s), Cable(s), Accessories
Suggested Programming Environment Arduino, UIFlow
Interconnect System Grove, HY2.0-4P
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Other Names 2221-U084
Standard Package 1
Win Source Part Number 1128340-U084
Ultra Librarian 3D Model Ultra Librarian U084 CAD Model

Description

The U084 is a magnetic hall effect sensor that is designed to provide high-performance and reliability.

  • Win Source Part Number: 1128340
  • Platform: M5Stack
  • Suggested Programming Environment: Arduino and UIFlow
  • Package: Retail package with board(s), cable(s), and accessories
  • IC/Part: A3144E
  • Interconnect System: Grove and HY2.0-4P
  • REACH: Unaffected
  • ECCN: EAR99
