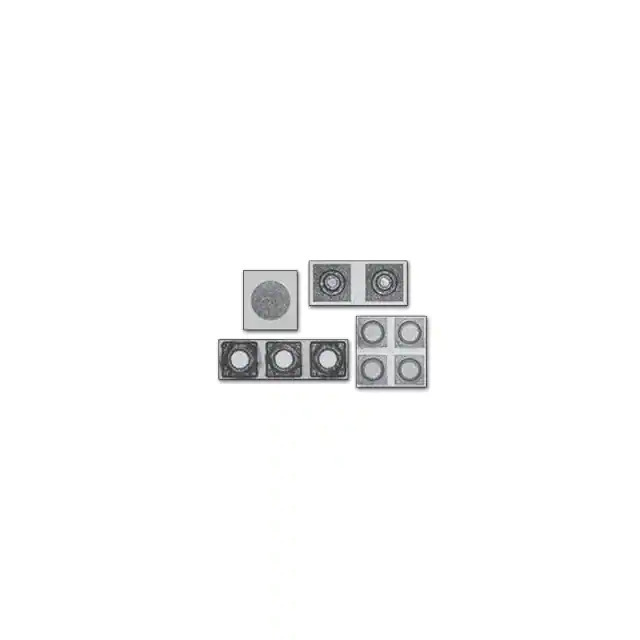

MPN7420-C12 M/A-Com Technology Solutions
Same model may have multiple batches, images only for reference.

MPN7420-C12

Part No MPN7420-C12
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description DIODE,PIN,CHIP, C12 / RF Diode PIN - Single 400V Die
Datasheet
MPN7420-C12 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr MACOM Technology Solutions
Series -
Package Tray
Product Status Active
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 400V
Capacitance @ Vr, F 0.08pF @ 50V, 100MHz
Resistance @ If, F 1.5Ohm @ 100mA, 100MHz
Temperature Range - Operating 175°C (TJ)
Package / Case Die
Supplier Device Package Die
Base Product Number MPN7420
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1354337-MPN7420-C12
Ultra Librarian 3D Model Ultra Librarian MPN7420-C12 CAD Model

Description

The MPN7420-C12 is a PIN-Single diode from MACOM Technology Solutions.

  • Application: RF Diode
  • Operating Temperature: 175°C
  • Voltage Peak Reverse: 400V
  • Resistance: 1.5Ohm @ 100mA and 100MHz
  • Capacitance: 0.08pF @ 50V and 100MHz
  • Status: Active
  • Package: Die
  • Mounting Type: Surface Mount
