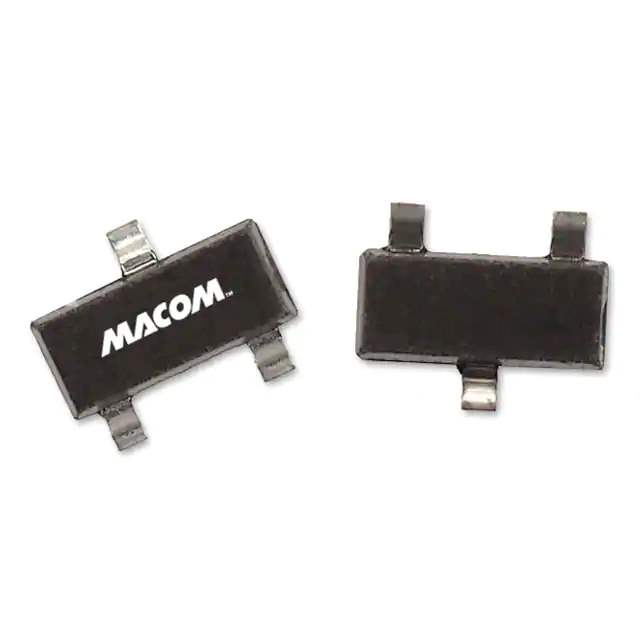

Same model may have multiple batches, images only for reference.

MAVR-045438-0287FT

Name: MAVR-045438-0287FT
Brand: M/A-Com Technology Solutions
SKU: 629206
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MAVR-045438-0287FT
Manufacturer	M/A-Com Technology Solutions
Catalog	Variable Capacitance Diodes (Varicaps, Varactors)
Description	VARACTOR, PLASTIC, DUAL CHIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Variable Capacitance (Varicaps, Varactors)
Mfr	M/A-Com Technology Solutions
Package	Tape & Reel
Product Status	Active
Capacitance @ Vr, F	7.48pF @ 4V, 1MHz
Capacitance Ratio	4.5
Capacitance Ratio Condition	C0/C30
Voltage - Peak Reverse (Max)	30 V
Diode Type	1 Pair Common Cathode
Q @ Vr, F	1600 @ 4V, 1MHz
Temperature Range - Operating	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23
Base Product Number	MAVR-045438
Standard Package	3,000 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0060
Win Source Part Number	629206-MAVR-045438-0287FT
Ultra Librarian 3D Model	Ultra Librarian MAVR-045438-0287FT CAD Model

Alternative Products

Description

The Variable Capacitance Diode with Win Source Part Number 629206-MAVR-045438-0287FT is a surface mount device designed for discrete semiconductor applications.

Win Source Part Number: 629206-MAVR-045438-0287FT
Mounting Type: Surface Mount
Application: Discrete semiconductor
Configuration: Common cathode diodes
Capacitance: 7.48pF @ 4V and 1MHz
Maximum Peak Reverse Voltage: 30V
Capacitance Ratio: 4.5 (C0/C30)
Package: Tape and reel, 3,000 pcs
Case/Package: TO-236-3, SC-59, SOT-23-3
Operating Temperature: -55°C to 125°C
Manufacturer: M/A-Com Technology Solutions
Product Status: Active
