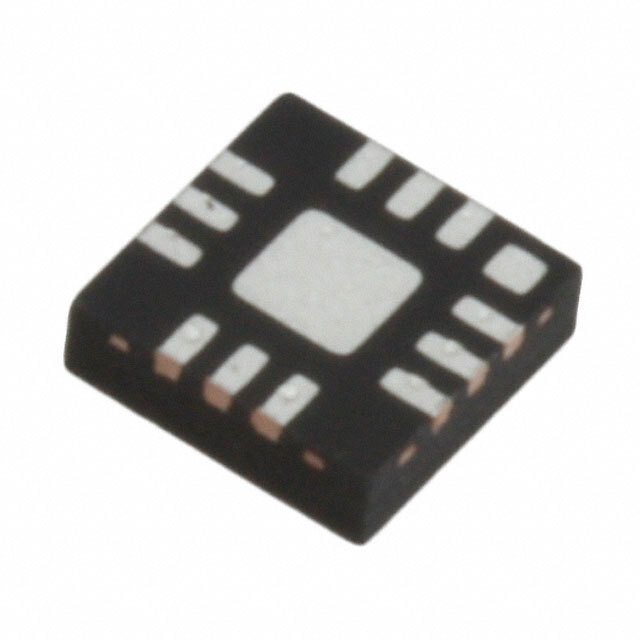

MASWSS0129TR-3000 M/A-Com Technology Solutions MASWSS0129TR-3000 Real Image MASWSS0129TR-3000 label picture
Same model may have multiple batches, images only for reference.
MASWSS0129TR-3000 M/A-Com Technology Solutions MASWSS0129TR-3000 Real Image MASWSS0129TR-3000 label picture
MASWSS0129TR-3000 M/A-Com Technology Solutions MASWSS0129TR-3000 Real Image MASWSS0129TR-3000 label picture
Same model may have multiple batches, images only for reference.

MASWSS0129TR-3000

Part No MASWSS0129TR-3000
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description DPDT LEAD FREE SWITCH DC - 6GHZ
Datasheet
MASWSS0129TR-3000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel
Part Status Active
Frequency - Lower DC
Frequency - Upper 6GHz
Isolation @ Frequency 30dB @ 6GHz (typ)
Insertion Loss @ Frequency 1dB @ 6GHz
Topology Reflective
Circuit DPDT
P1dB 31dBm
Impedance 50 Ohm
Temperature Range - Operating -40°C ~ 85°C
RF Type 802.11a/b/g
Case 12-VFQFN Exposed Pad
Supplier Device Package 12-PQFN (3x3)
Win Source Part Number MASWSS0129TR-3000-207796
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MASWSS0129TR-3000 CAD Model

Description

The MASWSS0129TR-3000-207796 is an active DPDT reflective circuit electronic component that is designed to meet the requirements of RF/IF and RFID devices. The component is manufactured by M/A-Com Technology Solutions and is available @ Win Source. It has a 50 Ohm impedance, and its topology is reflective.

  • Frequency Range: The frequency range for the component is DC to 6GHz,
  • Isolation: and it has an isolation of 30dB @ 6GHz (typ)
  • Insertion Loss: and insertion loss of 1dB @ 6GHz.
  • Application: The MASWSS0129TR-3000-207796 is suitable for use in various devices such as 802.11a/b/g.
