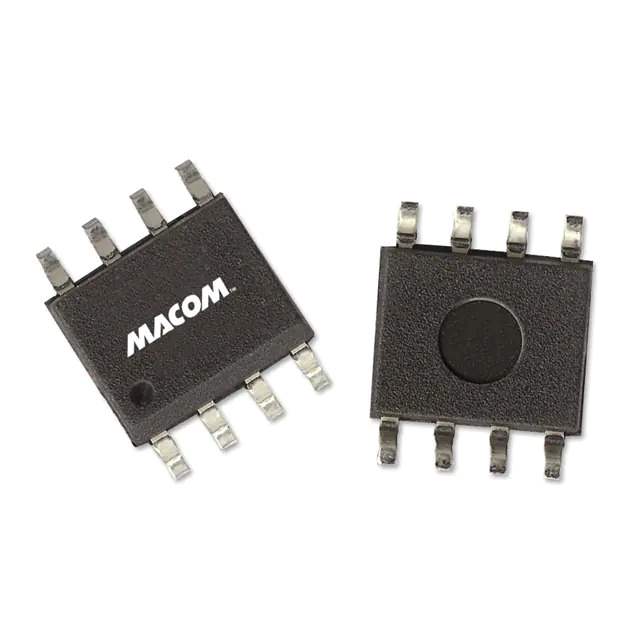

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Power Dividers/Splitters
Mfr M/A-Com Technology Solutions
Package Tape & Reel
Product Status Active
Insertion Loss 0.6dB
Frequency 824 MHz ~ 960 MHz
Specifications Isolation (Min) 15dB, 1.6 VSWR (Max), 4° Imbalance (Max)
Size / Dimension 0.193" L x 0.154" W x 0.069" H (4.90mm x 3.90mm x 1.75mm)
Package / Case 8-SOIC (0.154", 3.90mm Width)
Base Product Number MAPDCC0005
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 629109-MAPDCC0005TR
Ultra Librarian 3D Model Ultra Librarian MAPDCC0005TR CAD Model

Description

The 629109-MAPDCC0005TR is an RF power divider/splitter designed for use in RF and wireless applications.

  • Isolation (min): 15dB
  • VSWR (max): 1.6
  • Imbalance (max): 4°
  • Size: 0.193" L x 0.154" W x 0.069" H (4.90mm x 3.90mm x 1.75mm)
  • Frequency Range: 824MHz to 960MHz
  • Insertion Loss: 0.6dB
  • Package Type: 8-SOIC
  • Package Width: 0.154" (3.90mm)
  • Product Status: Active
  • Manufacturer: M/A-Com Technology Solutions
  • Packaging: Tape and Reel
  • Standard Package Size: 1,000 pcs
