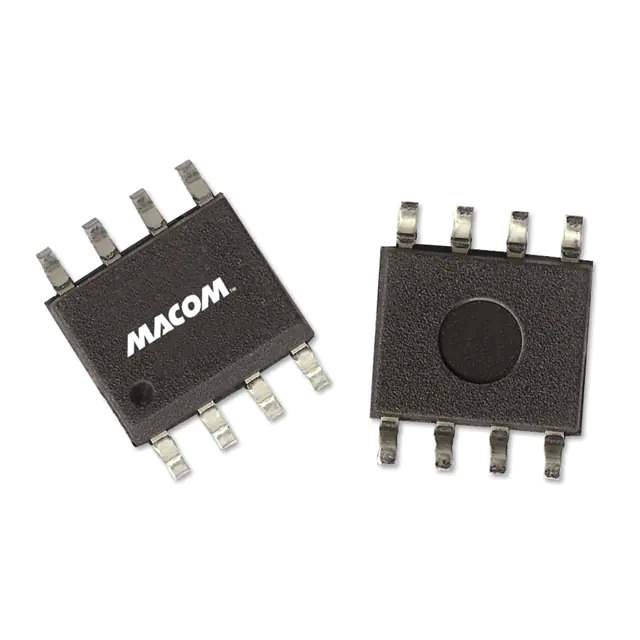

MAPDCC0001 Real Image
Same model may have multiple batches, images only for reference.

MAPDCC0001

Part No MAPDCC0001
Manufacturer M/A-Com Technology Solutions
Catalog RF Power Dividers/Splitters
Description 2-WAY POWER DIVIDER ,PB-FREE EQU
Datasheet
MAPDCC0001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Power Dividers/Splitters
Mfr M/A-Com Technology Solutions
Package Tube
Product Status Active
Insertion Loss 0.5dB
Frequency 824 MHz ~ 960 MHz
Specifications Isolation (Min) 15dB, 1.5 VSWR (Max), 1.5° Imbalance (Max)
Size / Dimension 0.193" L x 0.154" W x 0.069" H (4.90mm x 3.90mm x 1.75mm)
Package / Case 8-SOIC (0.154", 3.90mm Width)
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 629107-MAPDCC0001
Ultra Librarian 3D Model Ultra Librarian MAPDCC0001 CAD Model

Description

The MAPDCC0001 is an RF power divider/splitter manufactured by M/A-Com Technology Solutions.

  • Frequency Range: 824MHz to 960MHz
  • Isolation: 15dB (Minimum)
  • VSWR: 1.5 (Maximum)
  • Size: 0.193" L x 0.154" W x 0.069" H (4.90mm x 3.90mm x 1.75mm)
  • Package: Tube
  • Insertion Loss: 0.5dB (Low)
