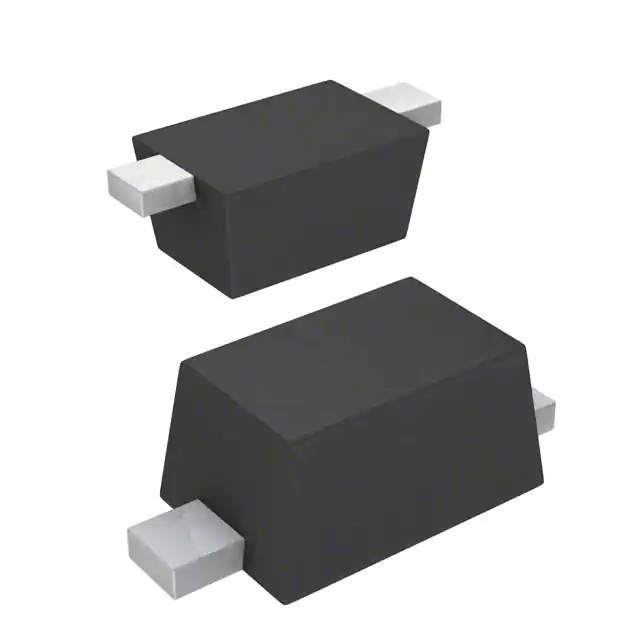

MADP-007436-12790T Real Image
Same model may have multiple batches, images only for reference.

MADP-007436-12790T

Part No MADP-007436-12790T
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description DIODE,PIN,PLASTIC,LEADFREE
Datasheet
MADP-007436-12790T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr M/A-Com Technology Solutions
Series SMPP
Package Tape & Reel
Product Status Active
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 75V
Current - Max 150 mA
Capacitance @ Vr, F 1pF @ 20V, 1MHz
Resistance @ If, F 500mOhm @ 10mA, 100MHz
Power Dissipation (Max) 200 mW
Temperature Range - Operating 175°C (TJ)
Package / Case SC-79, SOD-523
Supplier Device Package SC-79
Base Product Number MADP-007436
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 629044-MADP-007436-12790T
Ultra Librarian 3D Model Ultra Librarian MADP-007436-12790T CAD Model

Description

The 629044-MADP-007436-12790T is an RF diode with a maximum current rating of 150 mA.

  • Diode Type: PIN diode
  • Capacitance: 1pF @ 20V and 1MHz
  • Maximum Peak Reverse Voltage: 75V
  • Power Dissipation: 200 mW
  • Low Resistance: 500mOhm @ 10mA and 100MHz
  • Package: SC-79, SOD-523
  • Packaging: tape and reel
  • Operating Temperature Range: up to 175°C
  • Status: active product from M/A-Com Technology Solutions
  • Moisture Sensitivity Level: 1
  • ECCN Code: EAR99
