Same model may have multiple batches, images only for reference.

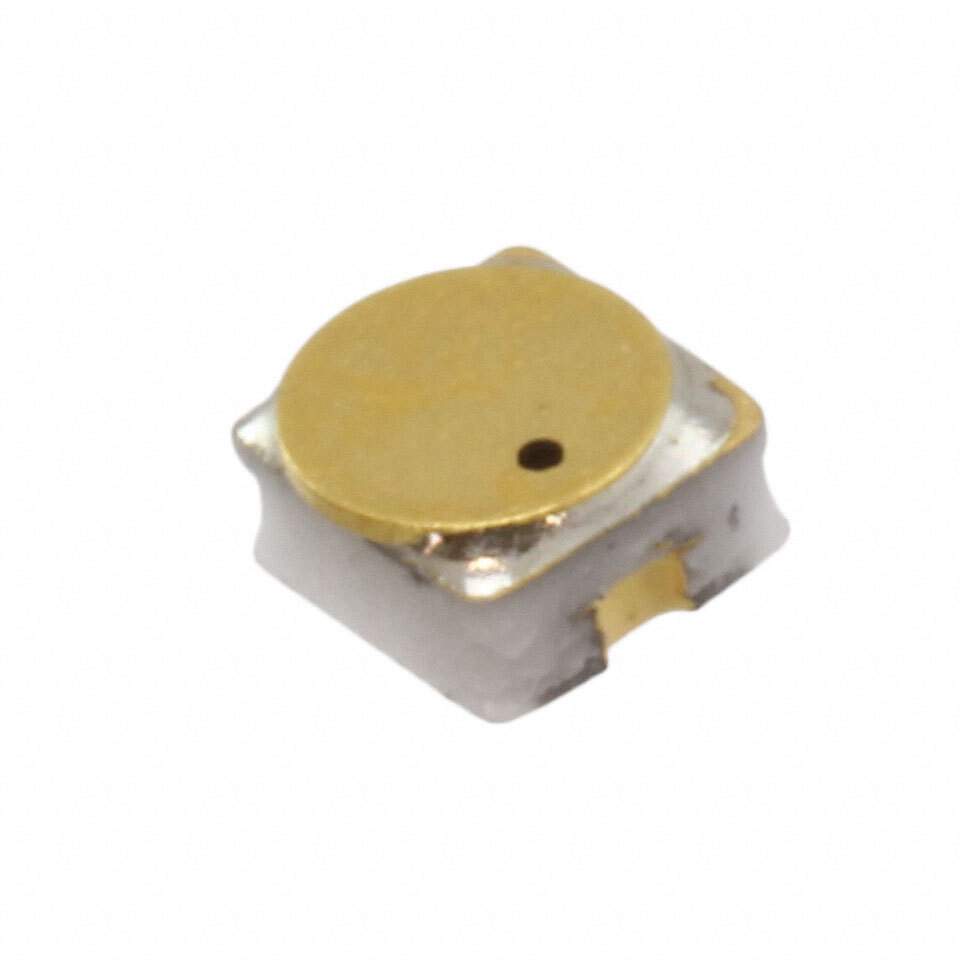

MA46H201-1056 Real Image
Same model may have multiple batches, images only for reference.

MA46H201-1056

Part No MA46H201-1056
Manufacturer M/A-Com Technology Solutions
Catalog Variable Capacitance Diodes (Varicaps, Varactors)
Description DIODE VARACTOR DUAL GAAS  /  Varactors Single 22 V Surface Mount
Datasheet
MA46H201-1056 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Variable Capacitance (Varicaps, Varactors)
Mfr MACOM Technology Solutions
Package Bulk
Capacitance @ Vr, F 1.1pF @ 4V, 1MHz
Capacitance Ratio 4.1
Capacitance Ratio Condition C2/C20
Voltage - Peak Reverse (Max) 22 V
Diode Type Single
Q @ Vr, F 3000 @ 4V, 50MHz
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 2-SMD
Base Product Number MA46H201
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0060
Other Names 1465-1012
Standard Package 50
Win Source Part Number 1020940-MA46H201-1056
Ultra Librarian 3D Model Ultra Librarian MA46H201-1056 CAD Model

Description

The M/A-Com Technology Solutions MA46H201-1056 is a variable capacitance diode designed for use in RF applications.

  • Capacitance: 1.1pF @ 4V and 1MHz
  • Voltage Rating: 22V
  • Capacitance Ratio: 4.1
  • Q Rating: 3000 @ 4V and 50MHz
  • Package: 2-SMD
  • Supplied In: bulk format with 50 pieces per package
