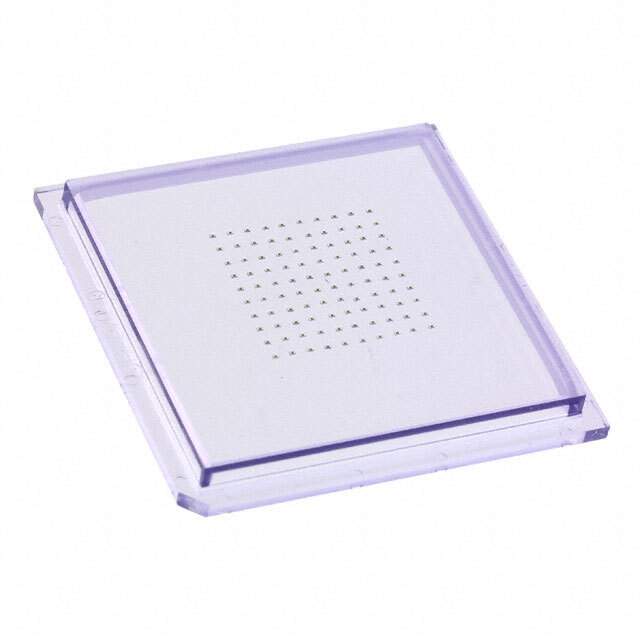

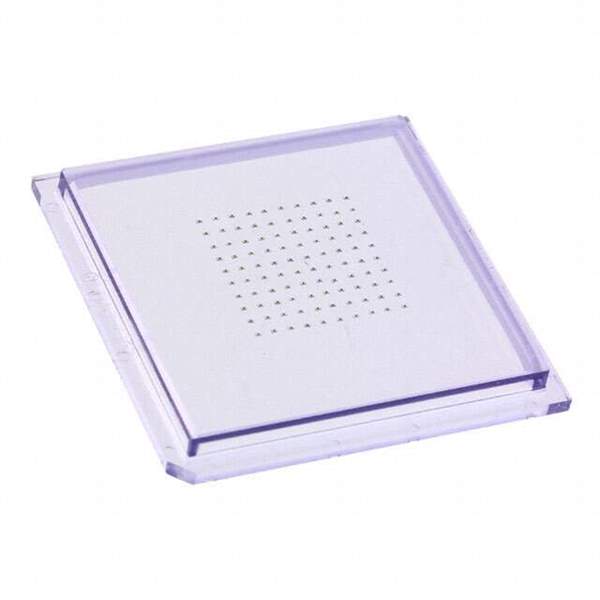

MA46474-134 Real Image
Same model may have multiple batches, images only for reference.

MA46474-134

Part No MA46474-134
Manufacturer M/A-Com Technology Solutions
Catalog Variable Capacitance Diodes (Varicaps, Varactors)
Description DIODE,VARACTOR,GAAS CHIP / Varactors Single 22 V Surface Mount Chip
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Variable Capacitance (Varicaps, Varactors)
Mfr MACOM Technology Solutions
Package Tray
Capacitance @ Vr, F 1.5pF @ 4V, 1MHz
Capacitance Ratio 7.4
Capacitance Ratio Condition C2/C20
Voltage - Peak Reverse (Max) 22 V
Diode Type Single
Q @ Vr, F 3000 @ 4V, 50MHz
Temperature Range - Operating -65°C ~ 175°C
Mounting SMD (SMT)
Package / Case Die
Supplier Device Package Chip
Base Product Number MA46474
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Other Names 1465-MA46474-134
Standard Package 100
Win Source Part Number 1000419-MA46474-134
Ultra Librarian 3D Model Ultra Librarian MA46474-134 CAD Model

Description

The MACOM Technology Solutions Diodes - Variable Capacitance (Varicaps, Varactors) are high-quality diodes used in electronic devices.

  • Capacitance Ratio: 7.4
  • Capacitance Ratio Condition: C2/C20
