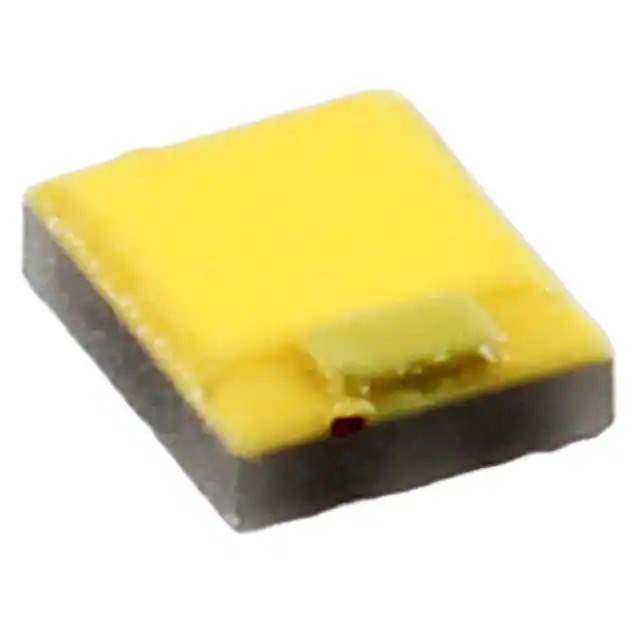

LXZ2-6570 Real Image
Same model may have multiple batches, images only for reference.

LXZ2-6570

Part No LXZ2-6570
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON COOL WHITE 6500K 2SMD / LED Lighting LUXEON Z ES White, Cool 6500K 2.8V 700mA 120° 0806 (2016 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - White LED Lighting
Mfr Lumileds
Series LUXEON Z ES
Package Tape & Reel
Product Status Active
Color White, Cool
CCT (K) 6500K
Flux @ 85°C, Current - Test 245lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.8V
Lumens/Watt @ Current - Test 125 lm/W
CRI (Color Rendering Index) 70
Current - Max 1.2A
Viewing Angle 120°
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Supplier Device Package SMD
Size / Dimension 0.080" L x 0.065" W (2.04mm x 1.64mm)
Height - Seated (Max) 0.031" (0.78mm)
Thermal Resistance of Package 3°C/W
Base Product Number LXZ2
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 880420-LXZ2-6570
Ultra Librarian 3D Model Ultra Librarian LXZ2-6570 CAD Model

Description

The LXZ2-6570 is a white LED lighting component from Lumileds.

  • Series: LUXEON Z ES
  • Color: Cool White
  • Package Size: 0.080" L x 0.065" W (2.04mm x 1.64mm)
  • Maximum Seated Height: 0.031" (0.78mm)
  • Maximum Current: 1.2A
  • Viewing Angle: 120°
  • Forward Voltage (Vf): 2.8V
  • Current Test: 700mA
  • Color Temperature (CCT): 6500K
  • Flux: 245lm @ 85°C
  • CRI (Color Rendering Index): 70
  • Thermal Resistance: 3°C/W
  • Mounting: Surface Mountable
  • Standard Package: 2,000 pcs
