Same model may have multiple batches, images only for reference.

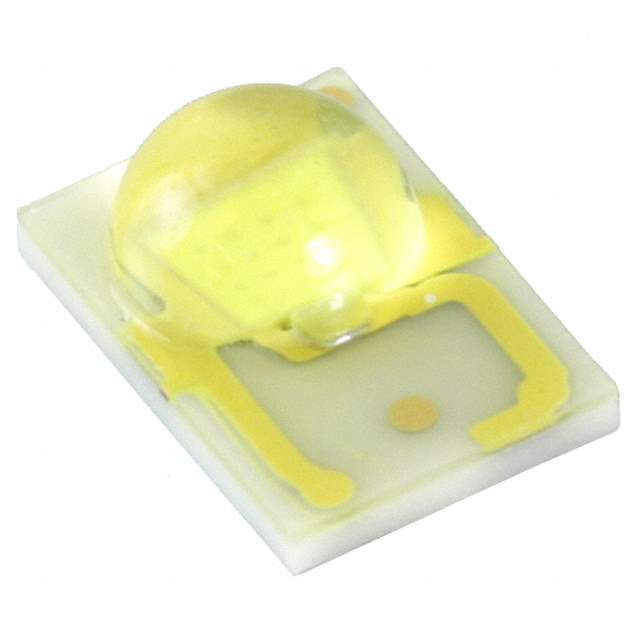

LXML-PWC1-0100 Real Image
Same model may have multiple batches, images only for reference.

LXML-PWC1-0100

Part No LXML-PWC1-0100
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON COOL WHITE 70CRI 3SMD
Datasheet
LXML-PWC1-0100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumileds
Packaging Reel - TR
Status Active
Color White, Cool
CCT (K) 4500K to 10000K
Flux @ 25°C, Current - Test 105 lm (Typ)
Current - Test 350mA
Forward Voltage 3V
Lumens/Watt @ Current - Test 100 lm/W
CRI (Color Rendering Index) 70 (Typ)
Current - Max 1A
Viewing Angle 120°
Mounting SMD (SMT)
Height - Seated (Max) 0.083" (2.10mm)
Thermal Resistance of Package 10°C/W
Win Source Part Number 104610-LXML-PWC1-0100
Family Name LXML-PWC1-0100
Introduction Date December 28, 1999
ECCN EAR99
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in LED Lighting, Medical
Ultra Librarian 3D Model Ultra Librarian LXML-PWC1-0100 CAD Model

Description

ProductId: 206632

Description: Its supply and demand status is balanced. It is a product manufactured by Lumileds and its Win Source Part Number is 104610-LXML-PWC1-0100. This product has a CCT range of 4500K to 10000K and a CRI of 70 (Typ). It is commonly used in LED lighting and medical applications. Its thermal resistance of package is 10°C/W.
