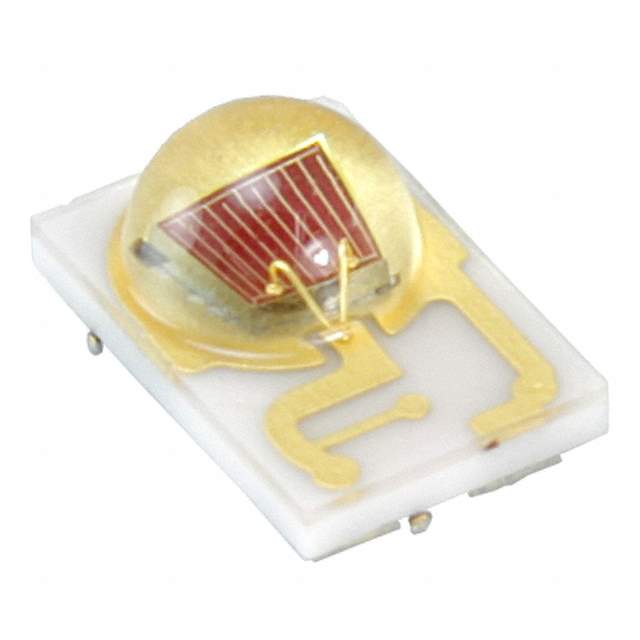

LXM2-PD01-0040 Real Image
Same model may have multiple batches, images only for reference.

LXM2-PD01-0040

Part No LXM2-PD01-0040
Manufacturer Lumileds
Catalog LED Lighting - Color
Description LED LUXEON REBEL RED 627NM SMD / LED Lighting Color series Red 627nm (Typ) 1812 (4532 Metric)
Datasheet
LXM2-PD01-0040 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - Color
Mfr Lumileds
Series LUXEON Rebel Color
Package Tape & Reel
Color Red
Wavelength 627nm (Typ)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.1V
Lumens/Watt @ Current - Test 65 lm/W
Current - Max 700mA
Luminous Flux @ Current/Temperature 48lm (Typ)
Temperature - Test 25°C
Viewing Angle 125°
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric)
Supplier Device Package SMD
Dimension 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) 0.083" (2.10mm)
Thermal Resistance of Package 8°C/W
Base Product Number LXM2-PD01
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1023-2,1417-1023-6,1416-1023-1,1417-1023-2-ND,1417-1023-1,1417-1023-2,1417-1023-1-ND,1416-1023-6,1417-1023-6-ND
Standard Package 1,000
Win Source Part Number 975929-LXM2-PD01-0040
Ultra Librarian 3D Model Ultra Librarian LXM2-PD01-0040 CAD Model

Description

The Lumileds LXM2-PD01-0040 is a high-quality electronic component designed for optoelectronics and LED lighting in the color red.

  • Viewing Angle: 125 degrees
  • Current: 700mA
  • Manufacturer: Lumileds
  • Homepage: www.luxeon.com
