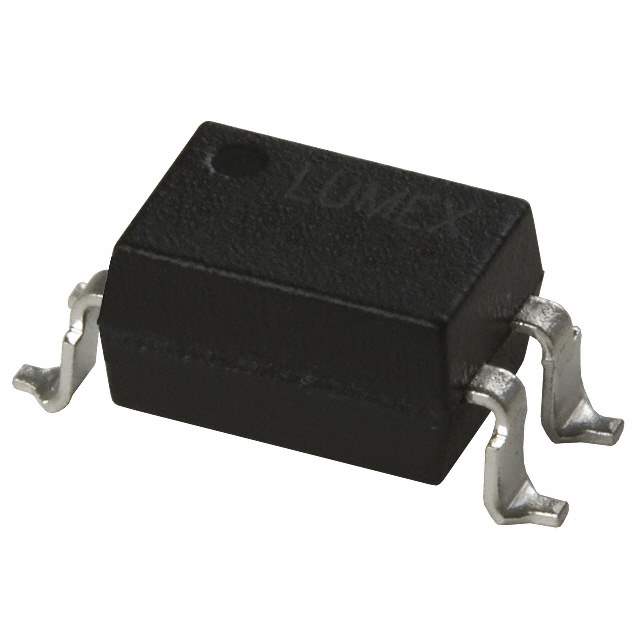

OCP-PCT114/E-TR Real Image1 OCP-PCT114/E-TR Real Image2
Same model may have multiple batches, images only for reference.
OCP-PCT114/E-TR Real Image1 OCP-PCT114/E-TR Real Image2
OCP-PCT114/E-TR Real Image1 OCP-PCT114/E-TR Real Image2
Same model may have multiple batches, images only for reference.

OCP-PCT114/E-TR

Part No OCP-PCT114/E-TR
Manufacturer Lumex Opto/Components Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATR 5KV TRANSISTOR 4-SMD / Four PIN Surface Mount Single Channel Photocoupler
Datasheet
OCP-PCT114/E-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lumex Opto/Components Inc.
Packaging Reel package
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 60% @ 2mA
Current Transfer Ratio (Maximum) 600% @ 2mA
Rise / Fall Time (Typ) 5μs, 4μs
Input Type DC
Output Type Transistor
Output Voltage MAX 60V
Output Current per Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 50mA
Vce Saturation (Maximum) 300mV
Operating Temperature Range -30°C ~ 100°C
Mounting SMD
Package 4-SMD, Gull Wing
Manufacturer Package 4-SMD
Win Source Part Number 791604-OCP-PCT114/E-TR
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian OCP-PCT114/E-TR CAD Model

Description

The OCP-PCT114/E-TR is an isolator electronic component from Lumex Opto/Components Inc.

  • Output Type: Transistor
  • Voltage Isolation: 5000Vrms
  • Maximum Output Voltage: 60V
  • Output Current Per Channel: 50mA
  • Current Transfer Ratio: 60% to 600% @ 2mA
  • Vce Saturation: 300mV
  • Rise/Fall Time: 5μs, 4μs
  • Package Type: 4-SMD, Gull Wing
  • Operating Temperature: -30°C to 100°C
