Same model may have multiple batches, images only for reference.

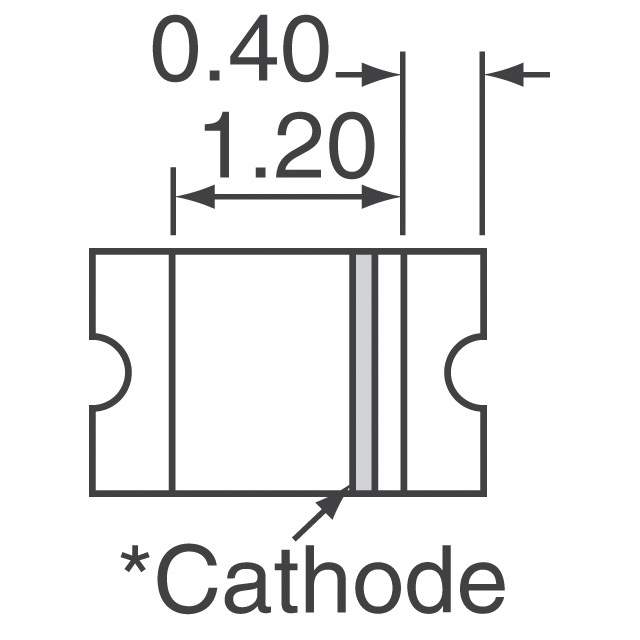

SML-LXT0805SBW-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LXT0805SBW-TR

Part No SML-LXT0805SBW-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED BLUE DIFFUSED SMD / Blue LED Indication - Discrete 4V 0805 (2012 Metric)
Datasheet
SML-LXT0805SBW-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel (TR)
Color Blue
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 11mcd
Lens Style Rectangle with Flat Top
Lens Size 1.30mm x 1.25mm
Voltage - Forward (Vf) (Typ) 4V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Peak 430nm
Package / Case 0805 (2012 Metric)
Dimension 2.00mm L x 1.25mm W
Height (Max) 0.80mm
Base Product Number SML-LXT0805
Other Names SML-LXT0805SBW-TRR
Standard Package 4,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241801-SML-LXT0805SBW-TR
Ultra Librarian 3D Model Ultra Librarian SML-LXT0805SBW-TR CAD Model

Description

The Lumex Opto/Components Inc. electronic component with Win Source Part Number 1241801-SML-LXT0805SBW-TR is an LED indication - discrete categorized product.

  • Package: tape & reel
  • Standard Package: 4,000
  • Viewing Angle: 140 degrees
  • Lens Transparency: diffused white
  • Millicandela Rating: 11mcd
  • Forward Voltage: 4V
  • Test Current: 20mA
  • Manufacturer: Lumex Opto/Components Inc.
