Same model may have multiple batches, images only for reference.

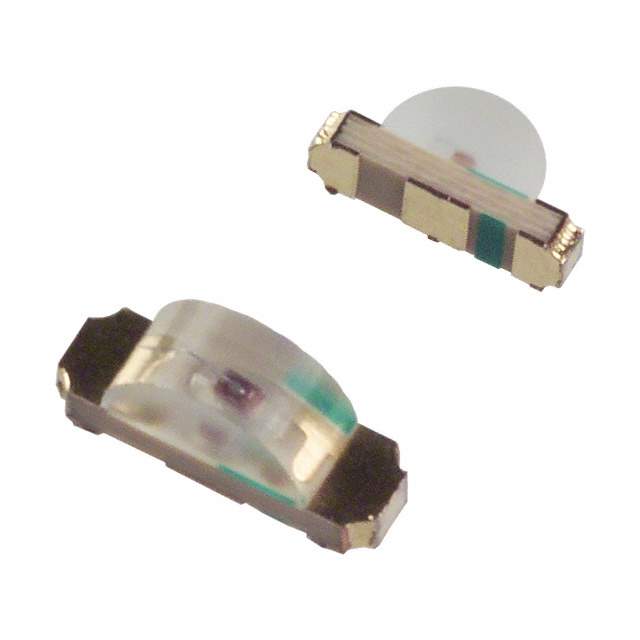

SML-LXR85SIC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LXR85SIC-TR

Part No SML-LXR85SIC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR SMD R/A / Red LED Indication - Discrete 2V 2-SMD, No Lead
Datasheet
SML-LXR85SIC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 70mcd
Lens Style Rectangle with Domed Top
Lens Size 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 160°
Mounting Type Surface Mount, Right Angle
Wavelength - Peak 636nm
Package / Case 2-SMD, No Lead
Dimension 3.20mm L x 1.50mm W
Height (Max) 1.00mm
Base Product Number SML-LXR85
Other Names 67-1710-2,67-1710-1,67-1710-6R,67-1710-6,67-1710-2R,SMLLXR85SICTR,67-1710-1R
Standard Package 3,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241861-SML-LXR85SIC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LXR85SIC-TR CAD Model

Description

The Lumex Opto/Components Inc. SML-LXR85 is a surface mount LED with a right angle mounting type.

  • Package/Case: 2-SMD, no lead type
  • Lens Style: Rectangle with a domed top
  • Lens Size: 2.00mm x 1.00mm
  • Viewing Angle: 160 degrees
  • Lens Transparency: Clear lens transparency
  • Lens Color: Colorless
  • Millicandela Rating: 70mcd
  • Voltage-Forward (Vf): 2V
  • Current-Test: 20mA
  • Wavelength-Peak: 636nm
  • Height: 1.00mm
  • Dimension: 3.20mm L x 1.50mm W
  • Ideal for: Optoelectronics and LED indication-discrete applications
