Same model may have multiple batches, images only for reference.

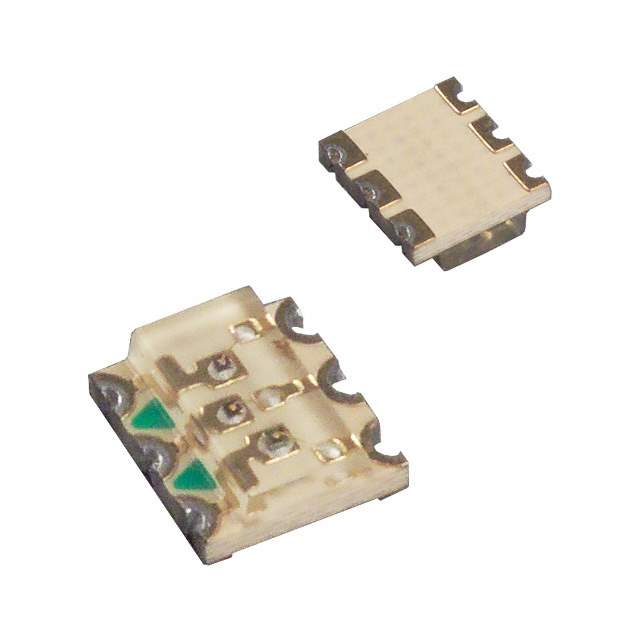

SML-LX3632SISUGSBC Real Image
Same model may have multiple batches, images only for reference.

SML-LX3632SISUGSBC

Part No SML-LX3632SISUGSBC
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RGB CLEAR 3632 SMD / Red, Green, Blue (RGB) LED Indication - Discrete 2V Red, 2.2V Green, 3.5V Blue 6-SMD, No Lead
Datasheet
SML-LX3632SISUGSBC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Red, Green, Blue (RGB)
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 75mcd Red, 60mcd Green, 50mcd Blue
Lens Style Rectangle with Flat Top
Lens Size 1.90mm x 3.60mm
Voltage - Forward (Vf) (Typ) 2V Red, 2.2V Green, 3.5V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Peak 636nm Red, 574nm Green, 430nm Blue
Package / Case 6-SMD, No Lead
Supplier Device Package 3632
Dimension 3.60mm L x 3.20mm W
Height (Max) 1.10mm
Base Product Number SML-LX3632
Other Names 67-1821-2R,67-1821-1R,67-1821-1,67-1821-2,SMLLX3632SISUGSBC,67-1821-6
Standard Package 1,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241867-SML-LX3632SISUGSBC
Ultra Librarian 3D Model Ultra Librarian SML-LX3632SISUGSBC CAD Model

Description

The SML-LX3632SISUGSBC is a colorless, clear, independent LED component from Lumex Opto/Components Inc.

  • Shape: Rectangular
  • Lens Style: Flat top
  • Lens Size: 1.90mm x 3.60mm
  • Dimension: 3.60mm L x 3.20mm W
  • Viewing Angle: 120 degrees
  • Millicandela Rating: 75mcd for red, 60mcd for green, and 50mcd for blue
  • Voltage - Forward (Vf) (Typ): 2V for red, 2.2V for green, and 3.5V for blue
  • Current - Test: 20mA for all colors
  • Wavelength - Peak: 636nm for red, 574nm for green, and 430nm for blue
  • Package: Tape and reel with 1,000 standard packages
  • Mounting: SMD (SMT)
  • Height: 1.10mm
  • Suitable for: LED indication - discrete applications
