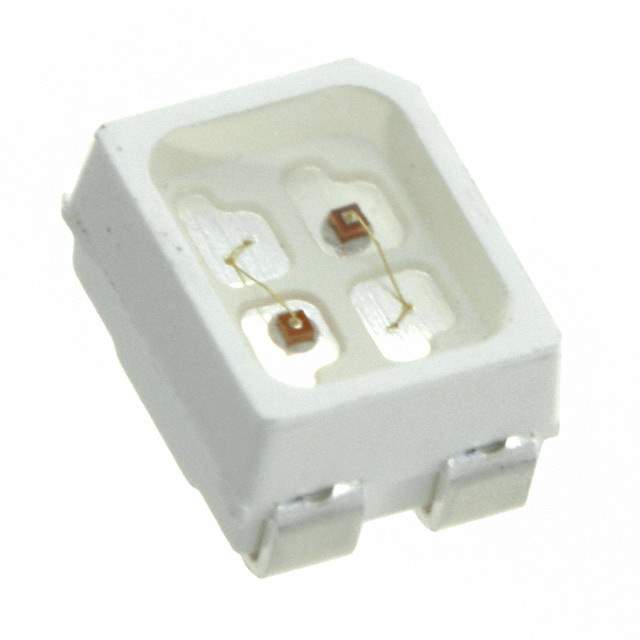

SML-LX2835IYC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX2835IYC-TR

Part No SML-LX2835IYC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RED/YELLOW CLEAR 2835 SMD / Red, Yellow LED Indication - Discrete 2V Red, 2.1V Yellow 4-SMD, J-Lead
Datasheet
SML-LX2835IYC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Red, Yellow
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 15mcd Red, 25mcd Yellow
Lens Style Rectangle with Flat Top
Lens Size 2.64mm x 2.14mm
Voltage - Forward (Vf) (Typ) 2V Red, 2.1V Yellow
Current - Test 20mA Red, 20mA Yellow
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Peak 635nm Red, 585nm Yellow
Package / Case 4-SMD, J-Lead
Supplier Device Package 2835
Dimension 3.20mm L x 2.70mm W
Height (Max) 1.80mm
Base Product Number SML-LX2835
Other Names 67-2129-1,67-2129-2,SMLLX2835IYCTR,67-2129-6
Standard Package 2,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241866-SML-LX2835IYC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX2835IYC-TR CAD Model

Description

The Lumex Opto/Components Inc. LED Indication - Discrete is a red and yellow LED with a viewing angle of 120 degrees.

  • Voltage-Forward: 2V for red and 2.1V for yellow
  • Millicandela Rating: 15mcd for red and 25mcd for yellow
  • Package: Tape and reel form with a standard package of 2,000
  • Mounting: Surface-mounted with a 4-SMD, J-Lead package
  • Lens Style: Rectangle with a flat top
  • Lens Size: 2.64mm x 2.14mm
  • Ideal for: Use in optoelectronics applications
