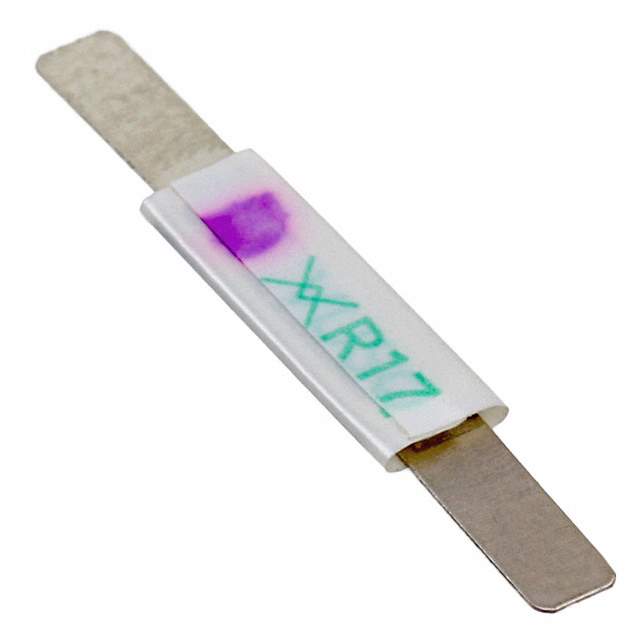

VLR170F Real Image
Same model may have multiple batches, images only for reference.

VLR170F

Part No VLR170F
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 1.7A STRAP
Datasheet
VLR170F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 12V
Current - Max 100A
Current - Hold (Ih) (Max) 1.7A
Current - Trip (It) 4.1A
Time to Trip 5s
Resistance - Initial (Ri) (Min) 18 mOhm
Resistance - Post Trip (R1) (Max) 64 mOhm
Temperature Range - Operating -40°C to 70°C
Mounting User Defined
Dimension 0.866" L x 0.146" W (22.00mm x 3.70mm)
Thickness (Max) 0.032" (0.80mm)
Approvals CSA, TUV, UL
Win Source Part Number 1117187-VLR170F
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VLR170F CAD Model

Description

The Littelfuse Inc. VLR170F is a polymeric type circuit protection device with a voltage rating of 12V and a current rating of 100A.

  • Voltage Rating: 12V
  • Current Rating: 100A
  • Thickness: 0.032 inches
  • Maximum Hold Current: 1.7A
  • Trip Current: 4.1A
  • Time to Trip: 5 seconds
  • Approvals: CSA, TUV and UL
  • Mounting: User
  • Length: 0.866 inches
  • Width: 0.146 inches
  • Resistance Initial: 18 mOhm
  • Resistance Post Trip: 64 mOhm
  • Category: Circuit Protection
  • Status: Active
  • Supply and Demand Status: Sufficient
