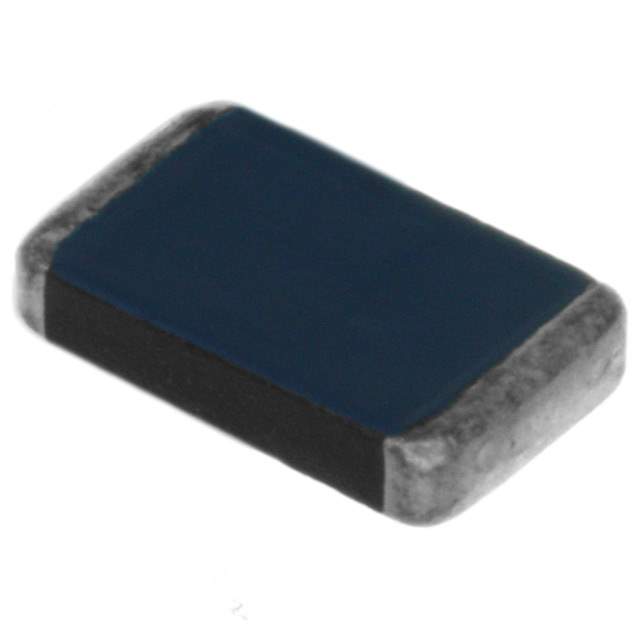

V22CH8T Real Image
Same model may have multiple batches, images only for reference.

V22CH8T

Part No V22CH8T
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 22V 100A 2SMD
Datasheet
V22CH8T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Varistor Voltage (Min) 18.7V
Varistor Voltage (Typ) 22V
Varistor Voltage (Max) 26V
Current - Surge 100A
Energy 1.0J
Number of Circuits 1
Maximum AC Volts 14VAC
Maximum DC Volts 18VDC
Capacitance @ Frequency 1600pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TA)
Mounting Surface Mount, MLCV
Dimension 2-SMD, No Lead
Win Source Part Number 130989-V22CH8T
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian V22CH8T CAD Model

Description

The Littelfuse Inc. 130989-V22CH8T is a surface mount varistor with a capacitance of 1600pF @ 1MHz.

  • Varistor Voltage: 18.7V to 26V (range), 22V (typical)
  • Maximum AC Voltage: 14VAC
  • Maximum DC Voltage: 18VDC
  • Surge Current: 100A
  • Energy: 1.0J
  • Application: Circuit protection device
  • Packaging: Reel - TR
  • Dimension: 2-SMD, no lead
  • Market: Open market
  • Supply and Demand Status: Limited
