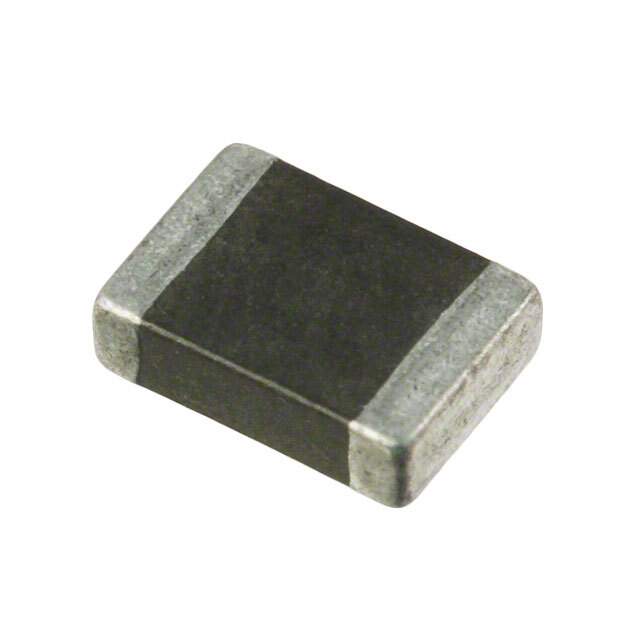

82535300 Real Image
Same model may have multiple batches, images only for reference.

82535300

Part No 82535300
Manufacturer Wurth Electronics Inc
Catalog TVS - Varistors, MOVs
Description HIGH SURGE 1812 SMD VARISTOR | VARISTOR 47V 800A 1812
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Wurth Electronics Inc.
Packaging Reel
Status Obsolete
Maximum AC Volts 30V
Maximum DC Volts 38V
Varistor Voltage (Minimum) 43.24V
Varistor Voltage 47V
Varistor Voltage (Maximum) 50.76V
Current - Surge 800A
Energy 4.2J
Capacitance at Frequency 2550pF at 1kHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMT, MLCV
Manufacturer Package 1812 (4532 Metric)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1133913-82535300
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 82535300 CAD Model

Description

The Wurth Electronics Inc. 1133913-82535300 is a varistor used for circuit protection.

  • Maximum AC Voltage: 30V
  • Maximum DC Voltage: 38V
  • Surge Current Rating: 800A
  • Energy Rating: 4.2J
  • Varistor Voltage: 47V
  • Capacitance: 2550pF @ 1kHz
  • Package: 1812 (4532 Metric)
  • Temperature Range: -40°C to 125°C
  • Ideal Applications: Power supplies and motor control circuits
