Same model may have multiple batches, images only for reference.

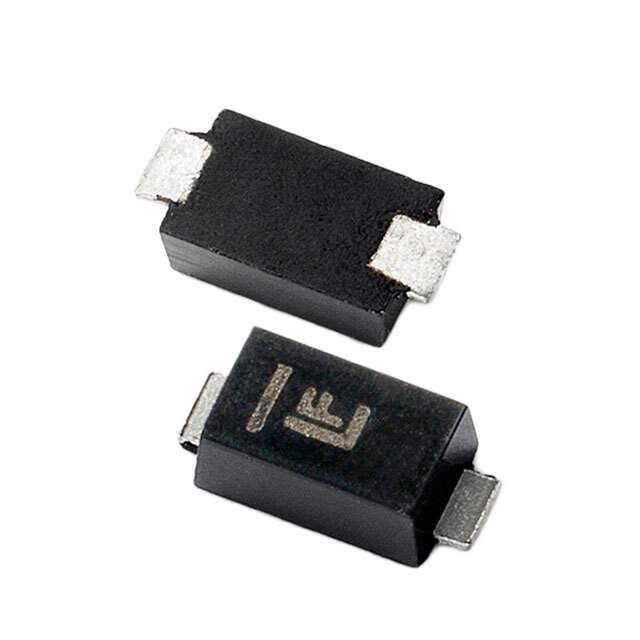

TPSMF4L28A Real Image
Same model may have multiple batches, images only for reference.

TPSMF4L28A

Part No TPSMF4L28A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 28VWM 45.4VC SOD123FL
Datasheet
TPSMF4L28A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 48 Weeks
Features 45.4V Clamp 8.8A Ipp Tvs Diode Surface Mount SOD-123F
Manufacturer Littelfuse Inc.
Series Automotive, AEC-Q101, TPSMF4L
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package SOD-123F
Case / Package SOD-123F
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number F7544TR, -TPSMF4L28A, F7544CT, F7544DKR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 937499-TPSMF4L28A
Ultra Librarian 3D Model Ultra Librarian TPSMF4L28A CAD Model

Description

The TPSMF4L28A is a surface mount TVS diode manufactured by Littelfuse Inc.

  • Series: TPSMF4L series
  • Certification: AEC-Q101 automotive certified
  • Clamp Voltage: 45.4V
  • Ipp: 8.8A
  • Package: SOD-123F package
  • Mounting: surface
  • Supply and Demand Status: balanced
  • Estimated Production Lead Time: 48 weeks
  • ECCN: EAR99
  • Application: circuit protection applications
