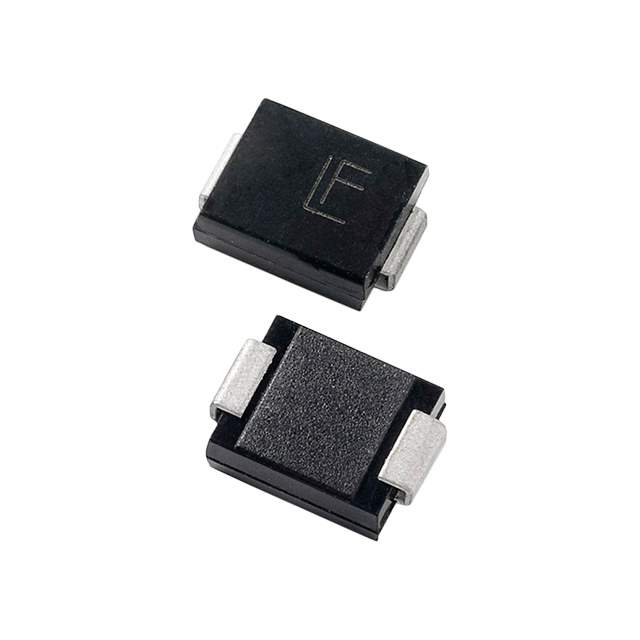

TPSMC30CA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 25.6V
Minimum Breakdown Voltage 28.5V
Max Clamping Voltage 41.4V
Peak Pulse Current(Ippm) 36.7A
Power Dissipation - Pd 1500W (1.5kW)
Applications Automotive
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DO-214AB (SMCJ)
Win Source Part Number 1113870-TPSMC30CA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TPSMC30CA CAD Model

Description

The Littelfuse Inc. TPSMC30CA is a surface mount Zener diode with a stand-off voltage of 25.6V and a minimum breakdown voltage of 28.5V.

  • Channel: Bidirectional
  • Temperature Range: -55°C to 150°C (TJ)
  • Peak Pulse Current: 36.7A
  • Power Dissipation: 1500W (1.5kW)
  • Application: Automotive
  • Packaging: Reel - TR
  • Popularity: Medium
  • Supply and Demand Status: Balanced
