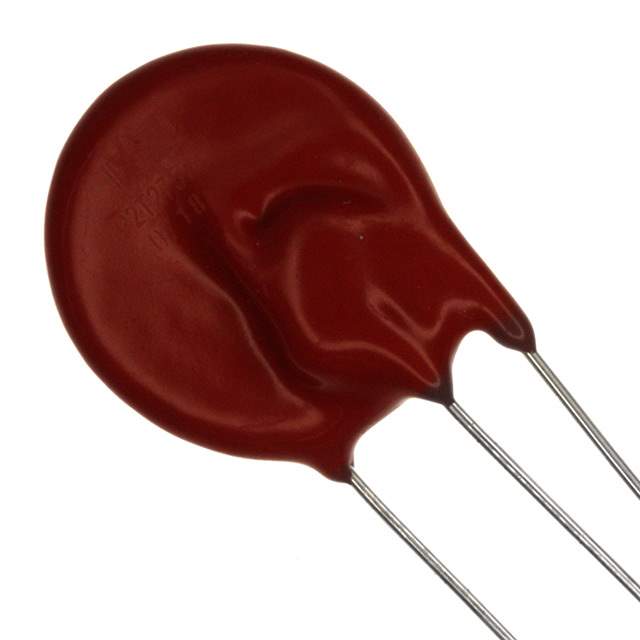

TMOV20RP510M Real Image
Same model may have multiple batches, images only for reference.

TMOV20RP510M

Part No TMOV20RP510M
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 820V 10KA DISC 20MM / 820 V 10 kA Varistor 1 Circuit Through Hole Disc 20mm 3-Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Littelfuse Inc.
Series iTMOV®
Package Bulk
Maximum AC Volts 510 V
Maximum DC Volts 670 V
Varistor Voltage (Min) 738 V
Varistor Voltage (Typ) 820 V
Varistor Voltage (Max) 902 V
Current - Surge 10 kA
Energy 325J
Number of Circuits 1
Capacitance @ Frequency 350 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 85°C (TA)
Features Thermally Protected
Mounting Type Through Hole
Package / Case Disc 20mm 3-Lead
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Names F4055,TMOV20RP510M-ND,-TMOV20RP510M
Standard Package 200
Win Source Part Number 991085-TMOV20RP510M
Ultra Librarian 3D Model Ultra Librarian TMOV20RP510M CAD Model

Description

The 991085-TMOV20RP510M is a circuit protection product from Littelfuse Inc. It is a thermally protected product that comes in bulk packaging and has a capacitance of 350 pF @ 1 MHz.

  • Varistor Voltage (Min): 738V
  • Varistor Voltage (Typ): 820V
  • Varistor Voltage (Max): 902V
  • Surge Current: 10 kA
  • Maximum AC Voltage: 510V
  • Maximum DC Voltage: 670V
  • Energy Rating: 325J
  • Mounting Type: Through-Hole
  • Package/Case: Disc 20mm 3-Lead
  • Temperature Range: -55°C to 85°C (TA)
  • ECCN: EAR99
  • HTSUS Code: 8533.40.4000
