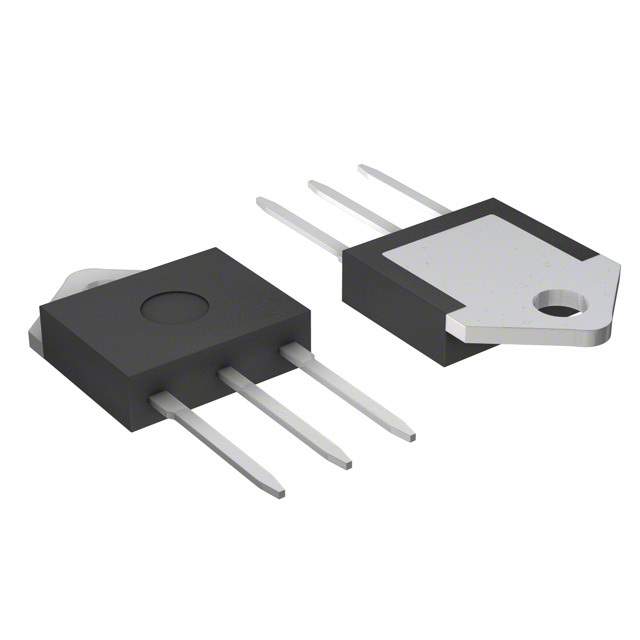

Same model may have multiple batches, images only for reference.

SK255KDTP

Name: SK255KDTP
Brand: Littelfuse Inc.
SKU: 1278820
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SK255KDTP
Manufacturer	Littelfuse Inc.
Catalog	SCRs - Single
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Thyristors - SCRs
Mfr	Littelfuse Inc.
Package	Tube
Product Status	Obsolete
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	50 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	35 A
Current - On State (It (RMS)) (Max)	55 A
Current - Hold (Ih) (Max)	120 mA
Current - Off State (Max)	10 µA
SCR Type	Standard Recovery
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-218-3
Supplier Device Package	TO-218AC
Other Names	F7320,-SK255KDTP
Standard Package	3,600
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.30.0080
Win Source Part Number	1278820-SK255KDTP
Ultra Librarian 3D Model	Ultra Librarian SK255KDTP CAD Model

Description

This electronic component is a thyristor - SCR with a Win Source Part Number of 1278820-SK255KDTP. It has a voltage of 1.2 kV and a current rating of 35 A.

Mounting: Through hole
Package: TO-218-3
Maximum Current Rating: 10 µA
Supplier Device Package: TO-218AC
Status: Obsolete
