Same model may have multiple batches, images only for reference.

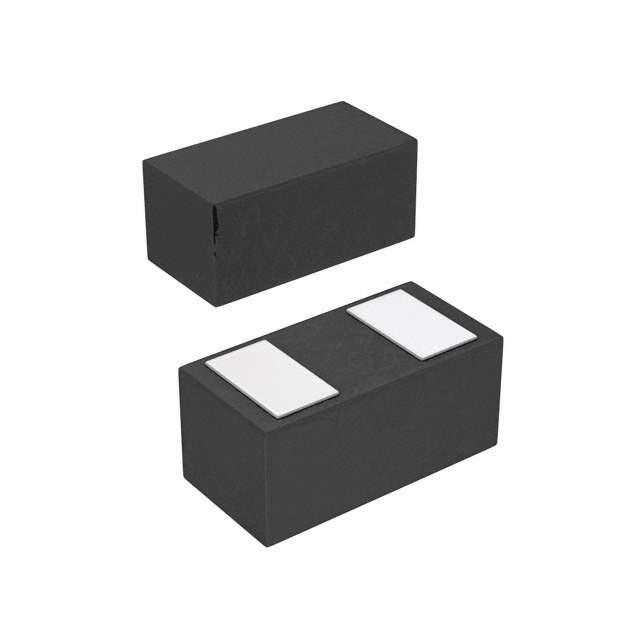

SESD0201C-120-058 Real Image
Same model may have multiple batches, images only for reference.

SESD0201C-120-058

Part No SESD0201C-120-058
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 0201
Datasheet
SESD0201C-120-058 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 5.8V
Applications General Purpose
Capacitance @ Frequency 12pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 0201 (0603 Metric)
Win Source Part Number 113295-SESD0201C-120-058
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SESD0201C-120-058 CAD Model

Description

The Littelfuse Inc. 113295-SESD0201C-120-058 is an obsolete (EOL) electronic component.

  • Supply and Demand: The product is not under any supply and demand pressure.
  • Manufacturer: Littelfuse is a well-known manufacturer of electronic components.
  • Status: The product is a balance supply and demand status.
  • Application: The product is designed to be used in general-purpose applications and is a bidirectional channel type Zener.
  • Capacitance: 12pF @ 1MHz
  • Operating Temperature: -40°C to 125°C (TJ)
