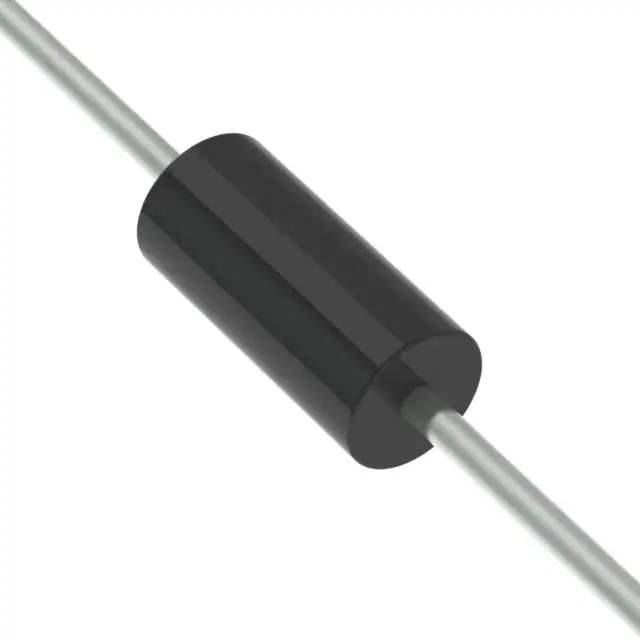

Same model may have multiple batches, images only for reference.

SA9.0CA

Name: SA9.0CA
Brand: Littelfuse Inc.
SKU: 663478
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SA9.0CA
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 9VWM 15.4VC DO204AC
Datasheet	SA9.0CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	SA
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	9V
Voltage - Breakdown (Min)	10V
Voltage - Clamping (Max) @ Ipp	15.4V
Current - Peak Pulse (10/1000µs)	33.1A
Power - Peak Pulse	500W
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-204AC, DO-15, Axial
Supplier Device Package	DO-204AC (DO-15)
Standard Package	4,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	663478-SA9.0CA
Ultra Librarian 3D Model	Ultra Librarian SA9.0CA CAD Model

Alternative Products

Description

The 663478-SA9.0CA is a Zener Transient Voltage Suppressor (TVS) Diode from Littelfuse Inc.

Reverse Standoff Voltage: 9V
Breakdown Voltage: 10V
Clamping Voltage @ Ipp: 15.4V
Peak Pulse Power: 500W
Mounting: Through-hole
Package: DO-204AC, DO-15, Axial
Temperature Range: -55°C to 175°C
Product Status: Active
REACH Regulations: Unaffected
