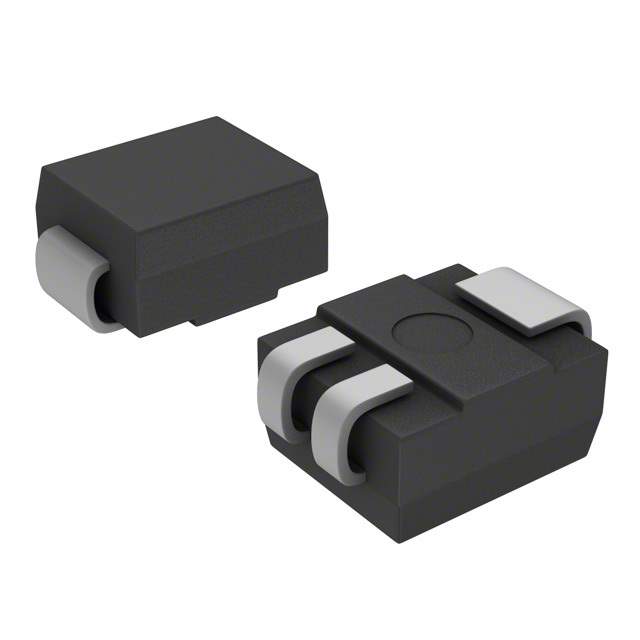

S4N1RP Real Image
Same model may have multiple batches, images only for reference.

S4N1RP

Part No S4N1RP
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Description SCR NON-SENS 400V 1A DO-214
Datasheet
S4N1RP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Voltage - Off State 400V
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - Gate Trigger (Igt) (Max) 10mA
Voltage - On State (Vtm) (Max) 1.6V
Current - On State (It (AV)) (Max) 640mA
Current - On State (It (RMS)) (Max) 1A
Current - Hold (Ih) (Max) 30mA
Current - Off State (Max) 10μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 25A, 30A
SCR Type Standard Recovery
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package Compak
Win Source Part Number 1093703-S4N1RP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S4N1RP CAD Model

Description

The Littelfuse Inc. S4N1RP is a Compak SCR designed for use in discrete semiconductor products.

  • Manufacturer: Littelfuse Inc.
  • Voltage-Off State: 400V
  • Voltage-Gate Trigger: 1.5V
  • Current-Gate Trigger: 10mA
  • Current-Hold: 30mA (max)
  • Maximum On-State Current: 640mA (AV) and 1A (RMS)
  • Maximum Off-State Current: 10μA
  • Non-Repetitive Surge: 25A, 30A @ 50, 60Hz
  • Mounting Technology: SMD (SMT)
  • Packaging: Reel - TR
  • Operating Temperature: -40°C to 125°C
