The Littelfuse S2S1RP is a thyristor designed for use in various electronic devices.

• Supply and Demand: Unlimited
• Mounting: SMD (SMT)
• Current Hold (Ih) (Max): 5 mA
• Off State Voltage: 200 V
• Gate Trigger Voltage (Vgt) (Max): 800 mV
• Gate Trigger Current (Igt) (Max): 12 µA
• On State Voltage (Vtm) (Max): 1.7 V
• On State Current (It (AV)) (Max): 510 mA
• On State Current (It (RMS)) (Max): 800 mA
• Off State Current (Max): 1 µA
• Non-Rep. Surge 50, 60Hz (Itsm): 16A, 20A
• Temperature Range: -40°C to 110°C

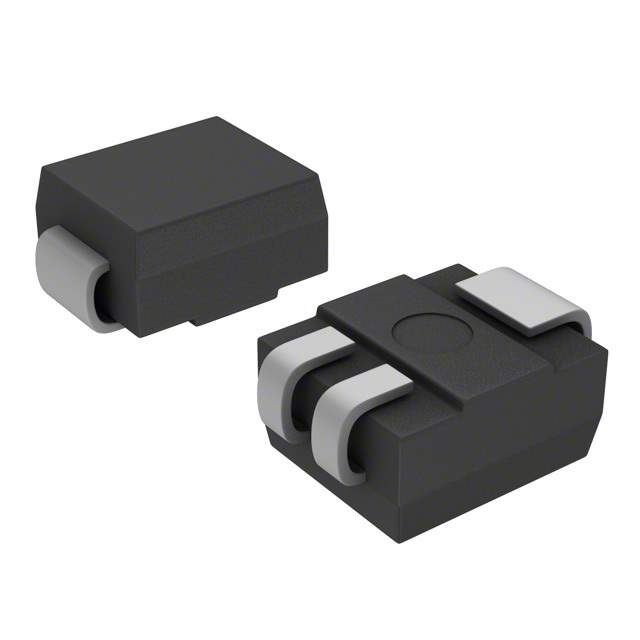

• Package/Case: DO-214AA, SMB (3 Leads), Compak
