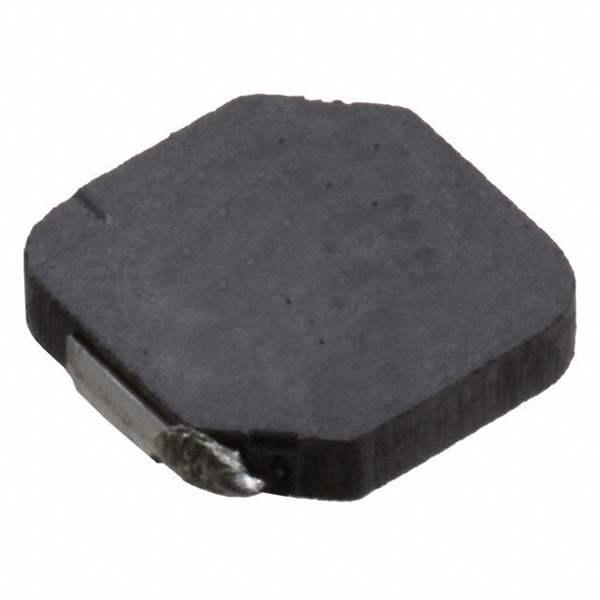

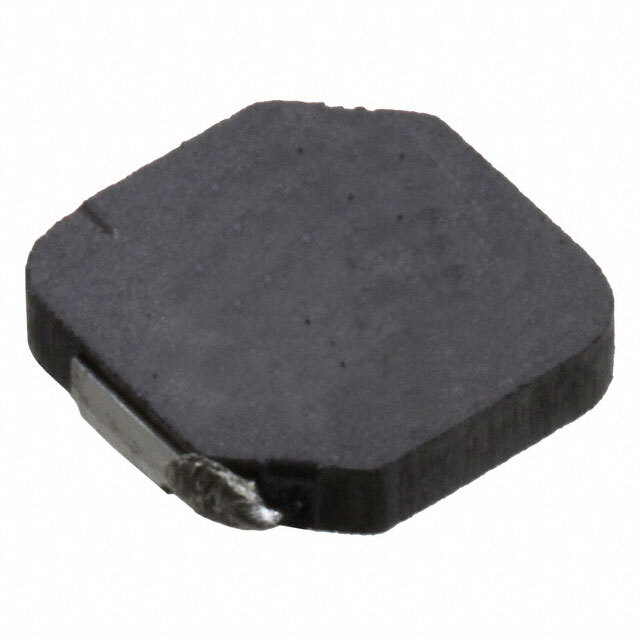

ETQ-P3M2R2YFP

Part No ETQ-P3M2R2YFP
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 2.2UH 5.8A 24.8MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 5.8 A
Current - Saturation (Isat) 10.9A
Shielding Shielded
DC Resistance (DCR) 24.8mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Case / Package 2-SMD, J-Lead
Size / Dimension 0.217" L x 0.197" W (5.50mm x 5.00mm)
Height - Seated (Max) 0.118\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1532127-ETQ-P3M2R2YFP
Ultra Librarian 3D Model Ultra Librarian ETQ-P3M2R2YFP CAD Model
